1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000
5
Parts Catalog
Central electrical system
6
Parts Diagram
Parts Catalog
Front electrical system
by
Rear electrical system
Central electrical system
1
2
2
3
4
5
6
7
8
9
9
10
11
11
12
12
13
13
14
14
15
16
17
18
18
19
1
Terminal cap
AP8120218
£4,01 Unit Price incl. VAT
2
HT coil
AP0265480
Not Available
3
Main wiring harness
AP8124836
Not Available
3
Main wiring harness
AP8124441
Not Available
4
Ext.sparkplug cap
AP0265244
Not Available
5
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
6
Hex socket screw
AP8152123
£1,27 Unit Price incl. VAT
7
Voltage regulator
AP8124267
Not Available
8
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
9
Spring washer 6,4x11x0,5*
AP8150429
Not Available
10
Screw w/ flange M6x35
AP8152282
£1,27 Unit Price incl. VAT
11
Low self-locking nut
AP8150451
£1,66 Unit Price incl. VAT
12
Washer 5,3x10x1*
AP8150012
£3,02 Unit Price incl. VAT
13
Rubber spacer
AP8120405
£5,52 Unit Price incl. VAT
14
T bush
AP8121736
£1,66 Unit Price incl. VAT
15
Relay-starter motor cable
AP8124269
Not Available
16
Ground-battery lead
AP8112832
Not Available
17
Microswitch
AP8112996
£78,91 Unit Price incl. VAT
18
Screw w/ flange M5x25
AP8152275
Not Available
19
Int.sparkplug cap
AP0265246
Not Available

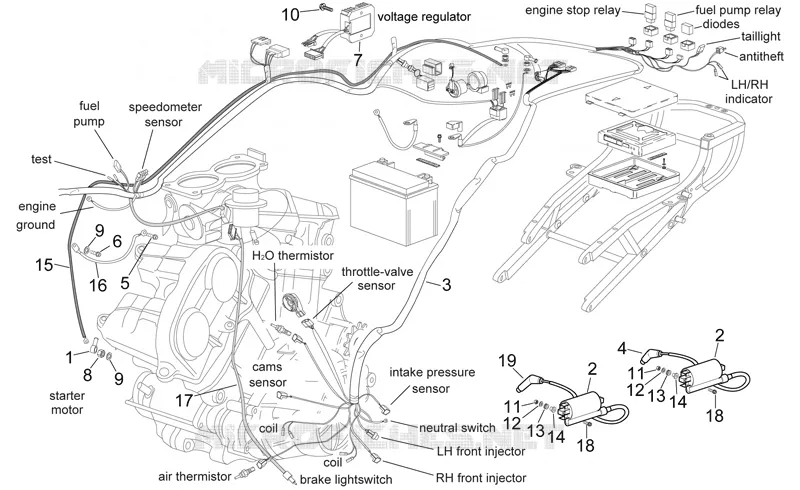

Find the detailed Central electrical system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
