1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front brake caliper
by
Rear master cylinder
Rear wheel
1
2
3
4
5
6
6
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
1
Chain cpl conn.link
AP8107118
Not Available
2
Chain ring Z=42
AP8107122
Not Available
3
Rear wheel, grey
AP8108676
Not Available
4
Rear wheel spring drive holder
AP8125733
Not Available
5
Tyre
0000000
Not Available
6
Flexible coupling rubber
AP8125731
Not Available
7
Tubeless tyre valve
AP8101744
£14,65 Unit Price incl. VAT
8
Rear wheel spacer
AP8121225
£13,37 Unit Price incl. VAT
9
Spring drive fixing bush
AP8121226
Not Available
10
Low self-locking nut
AP8150436
£1,94 Unit Price incl. VAT
11
Crown holder cpl.
AP8125730
Not Available
12
Rear wheel spindle
AP8125729
Not Available
13
Wheel spindle nut M25x1,5
AP8152324
£13,22 Unit Price incl. VAT
14
Washer 25,2x36x1
AP8152323
£8,57 Unit Price incl. VAT
15
Gasket ring 38x52x7
AP8125786
£51,38 Unit Price incl. VAT
16
Spacer
AP8125787
Not Available
17
Circlip
AP8125788
£14,47 Unit Price incl. VAT
18
Pin 10x20
AP8150463
£2,80 Unit Price incl. VAT
19
Bearing 6205-2rs1 25x52x15
AP8106806
£66,94 Unit Price incl. VAT
20
Hex socket screw M10x30
AP8150195
£1,88 Unit Price incl. VAT
21
Gasket ring 38x55x7
AP8121213
£13,72 Unit Price incl. VAT
22
Inside circlip d55
AP8121212
£2,80 Unit Price incl. VAT
23
Bearing 30x55x13
AP8110081
£25,36 Unit Price incl. VAT
24
Spring drive spacer
AP8125732
£86,94 Unit Price incl. VAT
25
Connecting link
AP8107136
Not Available
25
Connecting link
AP8107137
Not Available

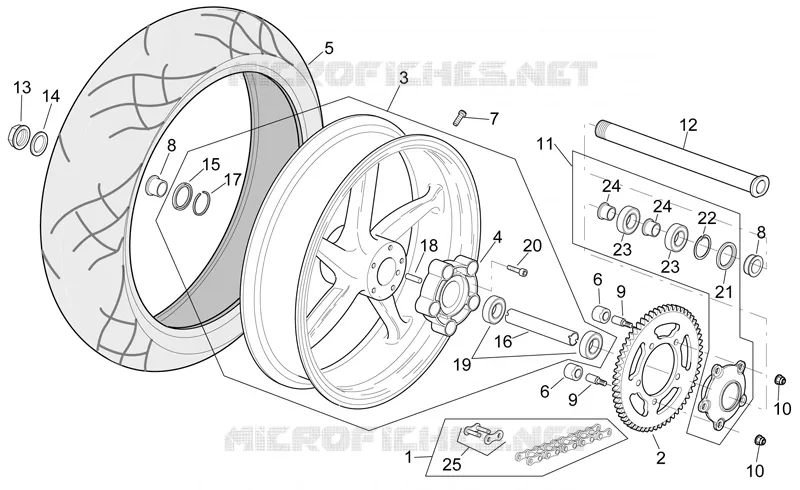

Find the detailed Rear wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RSV 1000

Frame I

Frame I

for RSV 1000 from 1999

Frame II

Frame II

for RSV 1000 from 1999

Foot rests

Foot rests

for RSV 1000 from 1999

Central stand

Central stand

for RSV 1000 from 1999

Steering

Steering

for RSV 1000 from 1999

Front fork I

Front fork I

for RSV 1000 from 1999

Fron fork II

Fron fork II

for RSV 1000 from 1999

Swing arm

Swing arm

for RSV 1000 from 1999

Connecting rod - rear shock abs.

Connecting rod - rear shock abs.

for RSV 1000 from 1999

Front body - Front fairing

Front body - Front fairing

for RSV 1000 from 1999

Front body - Duct

Front body - Duct

for RSV 1000 from 1999

Front body - Front mudguard

Front body - Front mudguard

for RSV 1000 from 1999

Central body - Upper fairings

Central body - Upper fairings

for RSV 1000 from 1999

Central body - Lower fairings

Central body - Lower fairings

for RSV 1000 from 1999

Fuel tank

Fuel tank

for RSV 1000 from 1999

Saddle

Saddle

for RSV 1000 from 1999

Rear body - Rear fairing

Rear body - Rear fairing

for RSV 1000 from 1999

Rear body - Undersaddle

Rear body - Undersaddle

for RSV 1000 from 1999

Dashboard

Dashboard

for RSV 1000 from 1999

Handlebar

Handlebar

for RSV 1000 from 1999

Clutch pump

Clutch pump

for RSV 1000 from 1999

Front master cilinder

Front master cilinder

for RSV 1000 from 1999

Cooling system

Cooling system

for RSV 1000 from 1999

Water coolers

Water coolers

for RSV 1000 from 1999

Expansion tank

Expansion tank

for RSV 1000 from 1999

Oil tank

Oil tank

for RSV 1000 from 1999

Air box

Air box

for RSV 1000 from 1999

Fuel pump I

Fuel pump I

for RSV 1000 from 1999

Fuel pump II

Fuel pump II

for RSV 1000 from 1999

Exhaust pipe

Exhaust pipe

for RSV 1000 from 1999

Front wheel

Front wheel

for RSV 1000 from 1999

Front brake caliper

Front brake caliper

for RSV 1000 from 1999

Rear wheel

Rear wheel

for RSV 1000 from 1999

Rear master cylinder

Rear master cylinder

for RSV 1000 from 1999

Rear brake caliper

Rear brake caliper

for RSV 1000 from 1999

Headlight

Headlight

for RSV 1000 from 1999

Turn indicators

Turn indicators

for RSV 1000 from 1999

Taillight

Taillight

for RSV 1000 from 1999

Front electrical system

Front electrical system

for RSV 1000 from 1999

Central electrical system

Central electrical system

for RSV 1000 from 1999

Rear electrical system

Rear electrical system

for RSV 1000 from 1999

Lock hardware kit

Lock hardware kit

for RSV 1000 from 1999

Decal and plate set

Decal and plate set

for RSV 1000 from 1999

Engine

Engine

for RSV 1000 from 1999

Crankcases I

Crankcases I

for RSV 1000 from 1999

Crankcases II

Crankcases II

for RSV 1000 from 1999

Oil pump

Oil pump

for RSV 1000 from 1999

Crankshaft I

Crankshaft I

for RSV 1000 from 1999

Crankshaft II

Crankshaft II

for RSV 1000 from 1999

Valves cover

Valves cover

for RSV 1000 from 1999

Cylinder head and valves

Cylinder head and valves

for RSV 1000 from 1999

Valves pads

Valves pads

for RSV 1000 from 1999

Front cylinder timing system

Front cylinder timing system

for RSV 1000 from 1999

Rear cylinder timing system

Rear cylinder timing system

for RSV 1000 from 1999

Gear box selector

Gear box selector

for RSV 1000 from 1999

Gear box

Gear box

for RSV 1000 from 1999

Clutch

Clutch

for RSV 1000 from 1999

Water pump

Water pump

for RSV 1000 from 1999

Ignition unit

Ignition unit

for RSV 1000 from 1999

Throttle body

Throttle body

for RSV 1000 from 1999

Sealing and lubricating agents

Sealing and lubricating agents

for RSV 1000 from 1999

Acc. - Cyclistic components I

Acc. - Cyclistic components I

for RSV 1000 from 1999

Acc. - Cyclistic components II

Acc. - Cyclistic components II

for RSV 1000 from 1999

Acc. - Special body parts

Acc. - Special body parts

for RSV 1000 from 1999

Acc. - Performance parts I

Acc. - Performance parts I

for RSV 1000 from 1999

Acc. - Performance parts II

Acc. - Performance parts II

for RSV 1000 from 1999

Acc. - Various

Acc. - Various

for RSV 1000 from 1999

Acc. - Mechanics anti-theft

Acc. - Mechanics anti-theft

for RSV 1000 from 1999

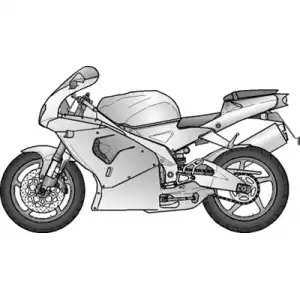

APRILIA RSV 1000 1999
