1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000
5
Parts Catalog
Valves cover
6
Parts Diagram
Parts Catalog
Crankshaft II
by
Cylinder head and valves
Valves cover
1
1
2
2
3
4
5
6
7
7
8
8
9
9
10
10
11
12
12
13
13
14
14
15
16
17
17
17
18
18
18
18
19
19
1
Spacer screw cpl.
AP0241625
Not Available
2
Valve cover gasket
AP0650345
Not Available
3
Rear valves cover
AP0211665
Not Available
4
Hex socket screw M10x40
AP0640581
£10,60 Unit Price incl. VAT
5
Front valves cover
AP0211660
Not Available
6
Washer 8,4
AP0250311
Not Available
7
Hex socket screw M8x25
AP0240081
Not Available
8
Hose clamp 65
AP0251830
Not Available
9
Intake flange
AP0267150
Not Available
10
Gasket ring 12x18
AP0250640
Not Available
11
Plate
AP0251100
Not Available
12
Temp. Sensor
AP0274040
Not Available
13
Hex socket screw
AP0241601
Not Available
14
Stud bolt
AP0241560
£6,91 Unit Price incl. VAT
15
Angular union
AP0922245
Not Available
16
Cover m18x1,5
AP0240170
Not Available
17
pipe
AP0224090
Not Available
18
Nut
AP0242851
Not Available
19
Cylinder head gasket
AP0650210
£93,46 Unit Price incl. VAT

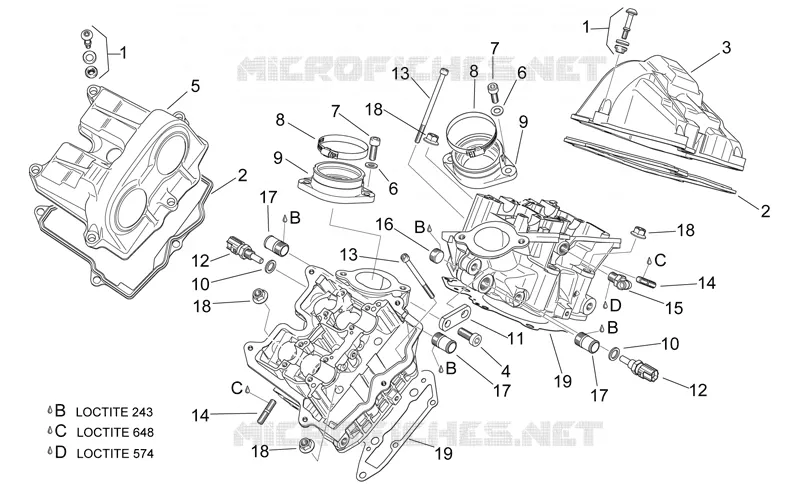

Find the detailed Valves cover APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
