1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000
5
Parts Catalog
Connecting rod - rear shock abs.
6
Parts Diagram
Parts Catalog
Swing arm
by
Front body - Front fairing
Connecting rod - rear shock abs.
1
1
1
2
2
2
2
3
4
5
5
6
6
7
7
7
7
7
8
9
10
10
11
11
11
11
12
12
13
13
13
13
14
15
16
17
17
1
Double connecting rod pin L40
AP8135924
£23,82 Unit Price incl. VAT
2
Roller cage
AP8110065
£11,72 Unit Price incl. VAT
3
Single conrod comp.
AP8135917
Not Available
4
Shock absorber
AP8123646
Not Available
5
Double conrod
AP8135916
Not Available
6
Screw w/ flange M10x65
AP8152322
Not Available
7
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
8
Hex socket screw M10x63
AP8150458
£14,06 Unit Price incl. VAT
9
Hex socket screw M10x74
AP8150457
Not Available
10
T bush *
AP8121155
£3,85 Unit Price incl. VAT
11
Oil seal D18x24x3
AP8110068
£16,14 Unit Price incl. VAT
12
T bush
AP8123859
Not Available
13
O-ring
AP8123860
£10,60 Unit Price incl. VAT
14
Return ring nut
AP8123861
Not Available
15
Ring nut
AP8123862
Not Available
16
Cover
AP8123863
Not Available
17
T bush
AP8123870
Not Available

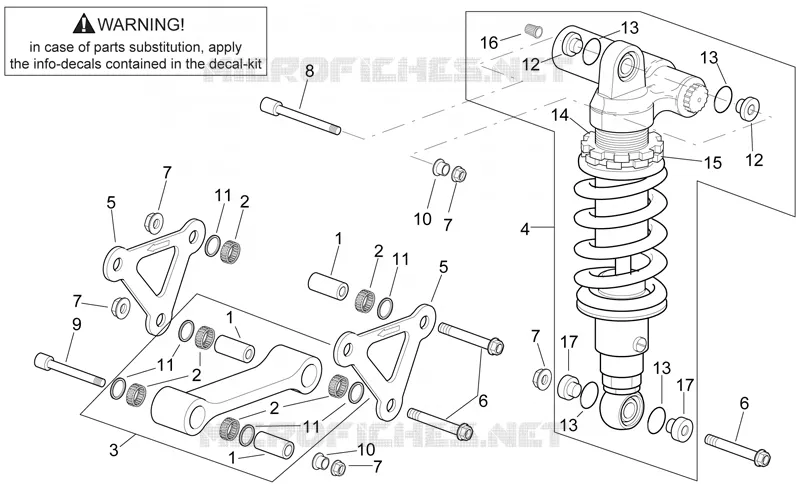

Find the detailed Connecting rod - rear shock abs. APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
