Parts Catalog
Crankshaft I
6
Parts Diagram
Parts Catalog
Oil pump
by
Crankshaft II
Crankshaft I
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
23
1
Crankshaft cpl.
AP0295660
Not Available
1
Crankshaft cpl.
AP0295662
Not Available
2
Connecting rod cpl.
AP0217346
Not Available
3
Hex socket screw
AP0440260
£2,50 Unit Price incl. VAT
4
Connecting rod screw
AP0640400
Not Available
5
Transmission key 4x5
AP0246570
Not Available
6
Transmission key 6x9
AP0946015
Not Available
7
Timing system gear cpl.
AP0295765
Not Available
8
Ext.wheel side counterweight
AP0219365
Not Available
9
Balance shaft gear cpl.
AP0295770
Not Available
10
Spring washer
AP0245860
£4,85 Unit Price incl. VAT
11
Primary drive gear
AP0295780
Not Available
12
Int.wheel side counterweight
AP0219360
Not Available
13
Spring washer
AP0245840
£22,14 Unit Price incl. VAT
14
Nut m33x1,5
AP0242940
Not Available
15
Lower balance shaft
AP0220370
Not Available
16
Nut
AP0242874
Not Available
17
Washer 24x54x2
AP0627200
Not Available
18
Water pump gear
AP0634610
Not Available
19
Idle gear
AP0634500
Not Available
20
Pin
AP0929930
Not Available
21
Clutch side counterweight
AP0219350
Not Available
22
Timing system gear cpl.
AP0295760
Not Available
23
Bushing,yellow 42x45x19
AP0233723
Not Available
23
Bushing,red 42x45x19
AP0233721
Not Available
23
Bushing,blue 42x45x19
AP0233722
Not Available

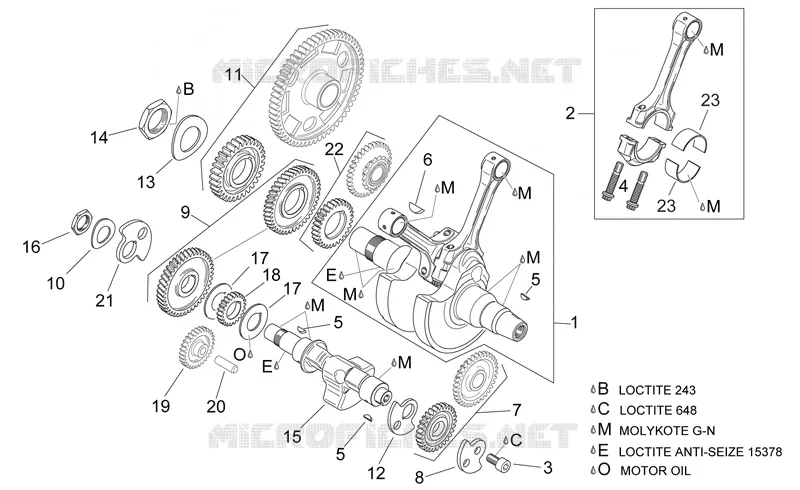

Find the detailed Crankshaft I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
