1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000
5
Parts Catalog
Fron fork II
6
Parts Diagram
Parts Catalog
Front fork I
by
Swing arm
Fron fork II
1
2
3
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
1
RH hub cpl.
AP8123637
Not Available
2
LH hub cpl.
AP8123638
Not Available
3
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
4
Hub+RH fork leg
AP8123822
Not Available
5
Hub+LH fork leg
AP8123823
Not Available
6
Dust cover
AP8123824
£34,81 Unit Price incl. VAT
7
Circlip
AP8123806
Not Available
8
Oil seal
AP8123825
£32,47 Unit Price incl. VAT
9
Bush D.47,1xd.43xh.20
AP8123827
Not Available
10
Bush D.44,5xd.41,1xh.20
AP8123828
Not Available
11
Ring
AP8123826
Not Available
12
Special washer
AP8123811
£12,65 Unit Price incl. VAT
13
screw M10x1,5
AP8123812
£24,38 Unit Price incl. VAT
14
Ohlins front fork kit
AP8795020
Not Available

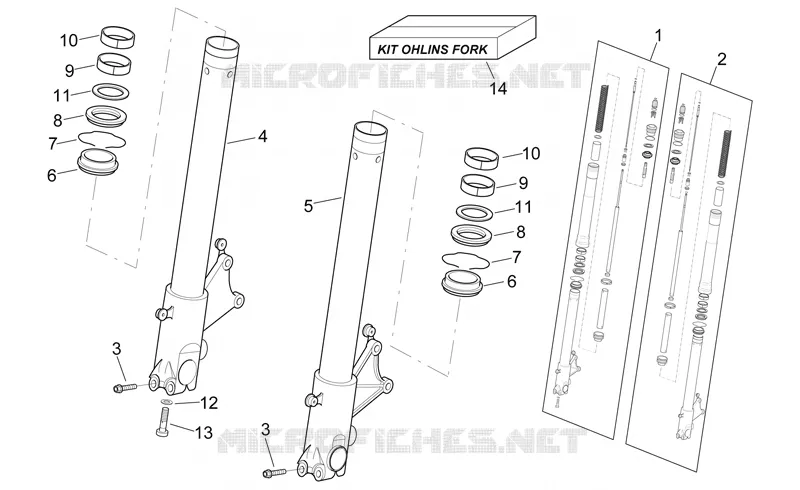

Find the detailed Fron fork II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
