1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000
5
Parts Catalog
Gear box selector
6
Parts Diagram
Parts Catalog
Rear cylinder timing system
by
Gear box
Gear box selector
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Gear shaft+spring cpl.
AP0220437
Not Available
2
Fork shaft
AP0258380
Not Available
3
Fork
AP0258360
Not Available
4
Fork
AP0258350
Not Available
5
Fork
AP0258370
Not Available
6
Index washer
AP0258310
Not Available
7
Ball bearing 16101
AP0932335
Not Available
8
Shift cam
AP0258322
Not Available
9
Hex socket screw
AP0241932
Not Available
10
Washer 6,4
AP0244211
Not Available
11
Washer
AP0227716
Not Available
12
Index assy. lever
AP0248375
Not Available
13
Index spring
AP0239247
Not Available
14
Pin
AP0229385
Not Available
15
Spring
AP0239430
£13,38 Unit Price incl. VAT
16
Pin spring
AP0239420
Not Available
17
Bush
AP0247940
£5,82 Unit Price incl. VAT
18
Circlip
AP0245440
Not Available
19
Ball bearing 6304
AP0832143
Not Available
20
Washer 20,2x27,5
AP0227442
Not Available
21
Circlip 20x1,75
AP0945665
£3,24 Unit Price incl. VAT
22
Rubbered pinion
AP0236365
Not Available
22
Rubbered pinion
AP0236366
£130,34 Unit Price incl. VAT
23
Spring washer 34x16,3
AP0239450
Not Available
24
Washer
AP0627210
Not Available
25
Hex screw
AP0940741
Not Available
26
Gear shaft+ratchet gear cpl.
AP0220435
Not Available
27
Washer
AP0227714
Not Available

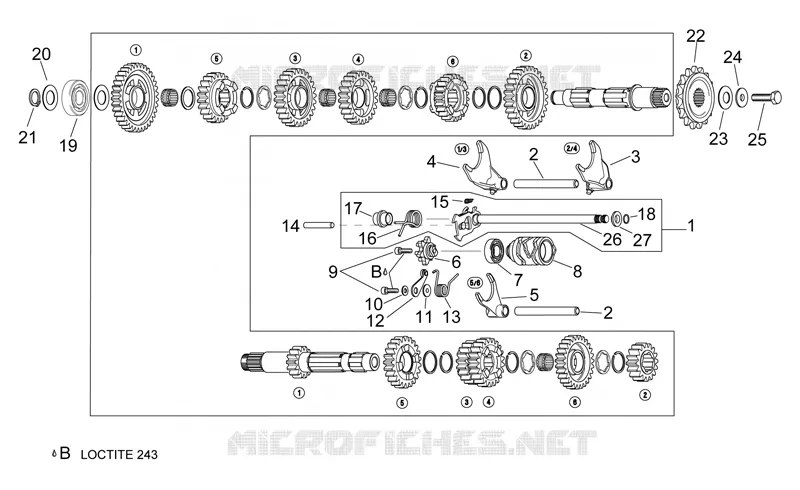

Find the detailed Gear box selector APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
