Parts Catalog
Front cylinder timing system
6
Parts Diagram
Parts Catalog
Valves pads
by
Rear cylinder timing system
Front cylinder timing system
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
16
17
18
19
20
1
Hex socket screw
AP0240400
Not Available
2
Hex screw M8x20
AP0940590
Not Available
3
Pin M8x12
AP0632010
Not Available
4
Bearings support Plate
AP0211765
Not Available
5
Chain guide
AP0236300
Not Available
6
Chain guide
AP0236310
Not Available
7
Washer 16,7x29x1
AP0627190
£7,02 Unit Price incl. VAT
8
Roller cage 16x22x10
AP0632161
Not Available
9
Timing system gear cpl.
AP0295765
Not Available
10
Spring washer b8
AP0845030
Not Available
11
Hex screw
AP0940631
£3,49 Unit Price incl. VAT
12
Exhaust camshaft
AP0220385
Not Available
13
Intake camshaft
AP0220380
Not Available
14
Timing system gear
AP0634730
Not Available
15
Timing system gear
AP0634735
Not Available
16
Hex socket screw M6x11,5
AP0840371
Not Available
17
Bush 8,2x12x25
AP0247980
Not Available
18
Spacer screw
AP0240960
Not Available
19
Camshaft chain
AP0297955
Not Available
20
Chain guide
AP0236320
Not Available

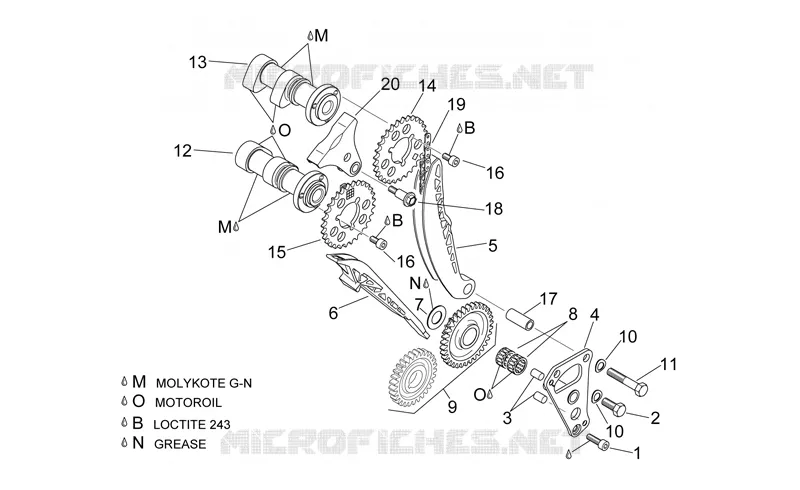

Find the detailed Front cylinder timing system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
