1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000
5
Parts Catalog
Ignition unit
6
Parts Diagram
Parts Catalog
Water pump
by
Throttle body
Ignition unit
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
24
25
26
27
1
Sprag clutch gear z=64
AP0634595
Not Available
2
Ignition unit 12V-380W
AP0295830
Not Available
3
Sprag clutch
AP0659110
£597,73 Unit Price incl. VAT
4
Sprag clutch housing
AP0659120
Not Available
5
Hex socket screw
AP0641590
Not Available
6
Hex socket screw m16x30
AP0241541
Not Available
7
Washer a17
AP0627270
Not Available
8
Ignition cover
AP0211650
Not Available
9
Cover m24x1,5
AP0241630
Not Available
10
O-ring 23,3x2,4
AP0430782
£5,32 Unit Price incl. VAT
11
Hex socket screw M6x40
AP0241816
Not Available
12
Screw w/ flange
AP0240580
Not Available
13
Cable protection
AP0260870
Not Available
14
Gasket
AP0650340
Not Available
15
Hex socket screw
AP0241811
Not Available
16
Pin M6x50
AP0229301
Not Available
17
Idle gear
AP0634600
Not Available
18
Double gear
AP0634740
Not Available
19
Starter motor cpl.
AP0294356
Not Available
20
Starter motor revision kit
AP0294352
Not Available
21
O-ring 24,4x3,1
AP0250140
Not Available
22
Hex socket screw
AP0840882
Not Available
23
Spark plug DCPR9E
AP0297942
£12,19 Unit Price incl. VAT
24
HT coil
AP0265480
Not Available
25
Ext.sparkplug cap
AP0265244
Not Available
26
Int.sparkplug cap
AP0265246
Not Available
27
Silent-block
AP8101372
£1,88 Unit Price incl. VAT

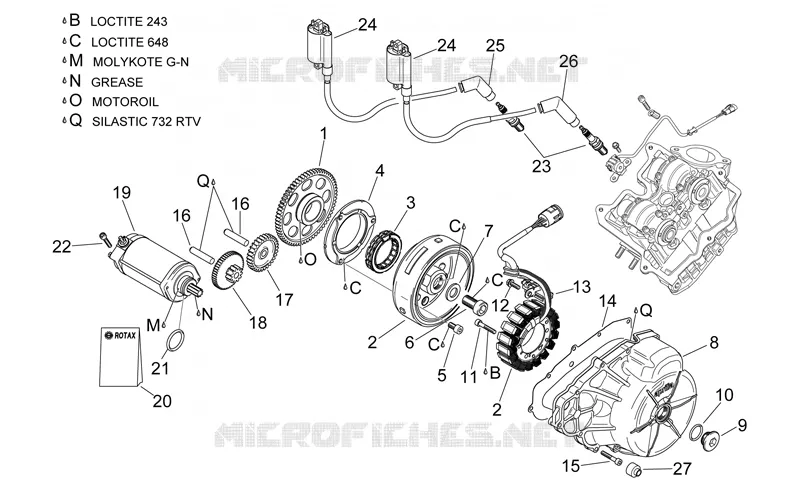

Find the detailed Ignition unit APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
