1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Central body - Lower fairings
by
Saddle
Fuel tank
1
2
3
4
5
6
7
8
8
9
9
10
10
11
12
13
14
15
16
1
Tank support
AP8134370
Not Available
2
F.Tank acoustic insul. Panel
AP8117127
Not Available
3
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
4
Fuel filler cap
AP8102912
Not Available
5
Fuel tank, black
AP8139574
Not Available
5
Fuel tank, cosmos blue
AP8139575
Not Available
6
Hex socket screw M5x16
AP8150454
£2,48 Unit Price incl. VAT
7
Hex socket screw M5x30
AP8150453
£2,48 Unit Price incl. VAT
8
T bush
AP8221023
£1,64 Unit Price incl. VAT
9
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
10
Tank rubber
AP8144062
Not Available
11
Fuel tank bush
AP8134419
£12,65 Unit Price incl. VAT
12
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
13
Washer 6,4x12,5*
AP8150014
£1,27 Unit Price incl. VAT
14
Hex screw M6x90
AP8150459
£4,90 Unit Price incl. VAT
15
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
16
Fuel tank heat protection
AP8117128
Not Available

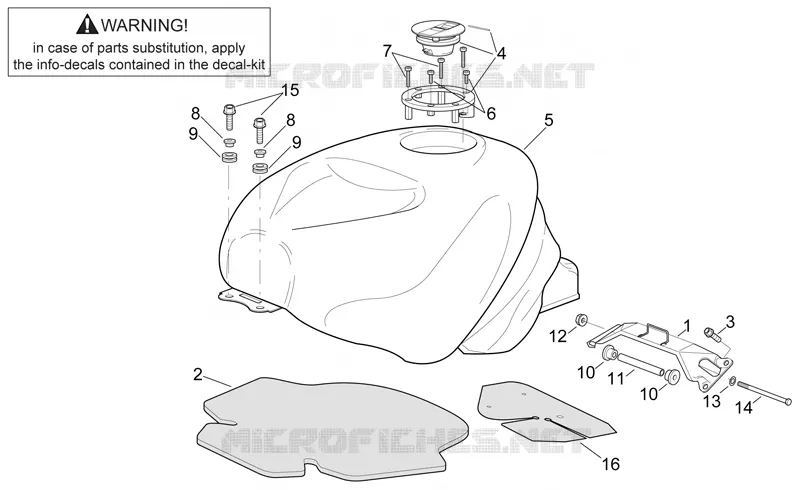

Find the detailed Fuel tank APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
