Engine displacement
250
2
Model
ATLANTIC
3
Year
2005
4
Trim
Atlantic
5
Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Water cooler
by
Taillight
Engine
1
2
3
1
Engine 125
AP8106972
Not Available
1
Engine 200
AP8106971
Not Available
1
Engine
AP8176106
Not Available
1
Engine
AP8176191
Not Available
1
Engine
AP8176094
Not Available
1
Engine
AP8176068
Not Available
1
Engine 200
AP8176064
Not Available
1
Engine
AP8176130
Not Available
1
Engine
AP8176093
Not Available
2
Cylinder gasket kit
AP8580014
Not Available
2
Cylinder gasket kit
AP8577093
Not Available
3
Engine set gasket
AP8577094
Not Available
3
Engine set gasket
AP8580013
Not Available

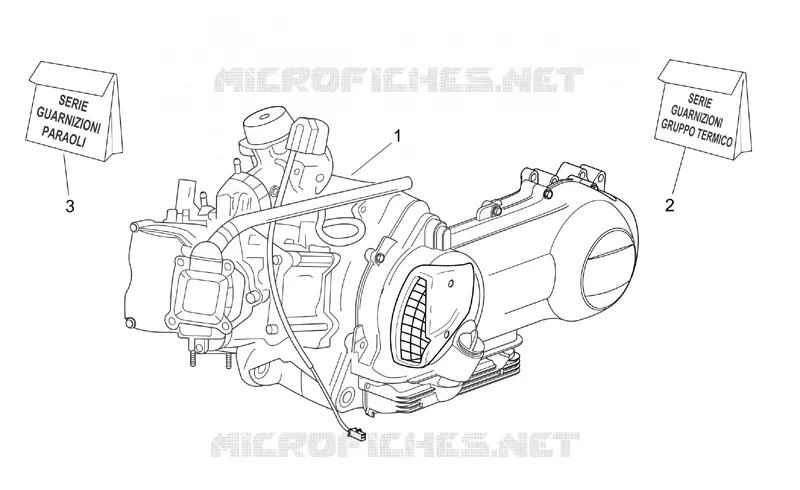

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
