Engine displacement
250
2
Model
ATLANTIC
3
Year
2005
4
Trim
Atlantic
5
Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Cylinder
by
Acc. - Top/cases II
Cylinder head
1
1
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Exhaust pipe stud bolt
AP8550401
Not Available
2
Half-cone
AP8550508
Not Available
3
Cup
AP8580076
Not Available
4
Spring
AP8580160
Not Available
5
Valve gasket ring
AP8550326
Not Available
6
Cup
AP8580069
Not Available
7
Intake valve
AP8580078
Not Available
8
Exhaust valve
AP8580079
Not Available
8
Exhaust valve
AP8577024
Not Available
9
Cylinder head gasket 1,1 mm
AP8580040
Not Available
9
Cylinder head gasket 0,3 mm
AP8577021
Not Available
9
Cylinder head gasket 1,1 mm
AP8580180
Not Available
9
Cylinder head gasket 0,3 mm
AP8590007
Not Available
10
Cylinder head assy.
AP8580271
Not Available
10
Cylinder head assy.
AP8580257
Not Available
11
screw M6x110
AP8577009
Not Available
11
screw
AP8580086
Not Available
12
Locating dowel
AP8551015
Not Available
13
Dowel
AP8560016
Not Available
14
Exhaust pipe gasket
AP8580066
Not Available
15
Screw
AP8551060
Not Available
16
Thermostat cover
AP8580154
Not Available
17
Thermostat
AP8575009
Not Available
18
Thermistor
AP8580258
Not Available
19
pipe
AP8580146
Not Available
20
Hose clamp
AP8575004
Not Available
21
O-ring
AP8575010
Not Available

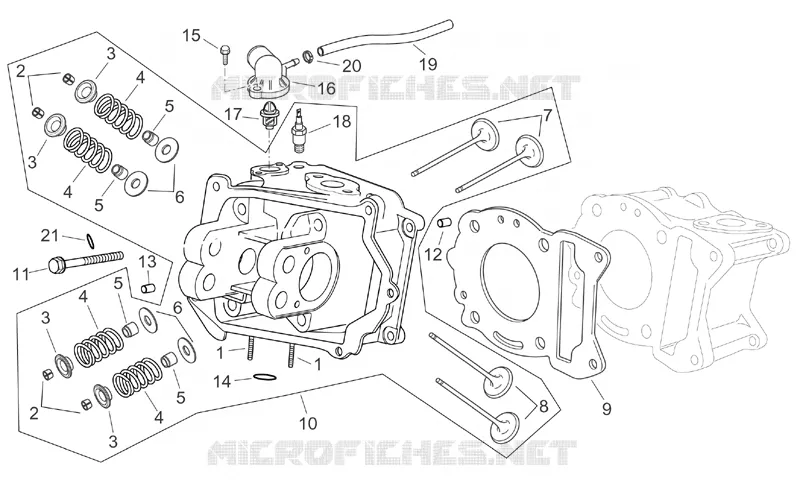

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
