Engine displacement
250
2
Model
ATLANTIC
3
Year
2005
4
Trim
Atlantic
5
Parts Catalog
Variator cover
6
Parts Diagram
Parts Catalog
Carburettor III
by
Headlight
Variator cover
1
2
3
4
5
6
7
7
8
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
1
Cover
AP8580137
Not Available
2
Self-tap screw 3x20
AP8580061
Not Available
3
Variator cover
AP8553004
Not Available
3
Variator cover
AP8580255
Not Available
3
Variator cover
AP8580241
Not Available
4
Bush
AP8550347
Not Available
5
Bearing
AP8550580
Not Available
6
Snap ring
AP8550578
Not Available
7
Pin d.9,5 h=15
AP8550107
Not Available
8
Screw w/ flange M6x30
AP8550558
Not Available
9
Air deflector
AP8580136
Not Available
9
Air deflector
AP8580245
Not Available
9
Air deflector
AP8580140
Not Available
10
screw
AP8550024
Not Available
11
Plug
AP8580236
Not Available
12
Variator air intake
AP8168117
Not Available
13
Hose clamp D25-45x8*
AP8220104
£4,25 Unit Price incl. VAT
14
Cover gasket
AP8580035
Not Available
15
Air intake
AP8178043
Not Available
16
Air duct
AP8540036
Not Available
17
Black hose 178x4
AP8120416
£1,00 Unit Price incl. VAT
18
Filter
AP8577006
Not Available
19
screw
AP8551014
Not Available
20
Cooling Cover
620553
Not Available
21
Self-tap screw 3x20
AP8580061
Not Available

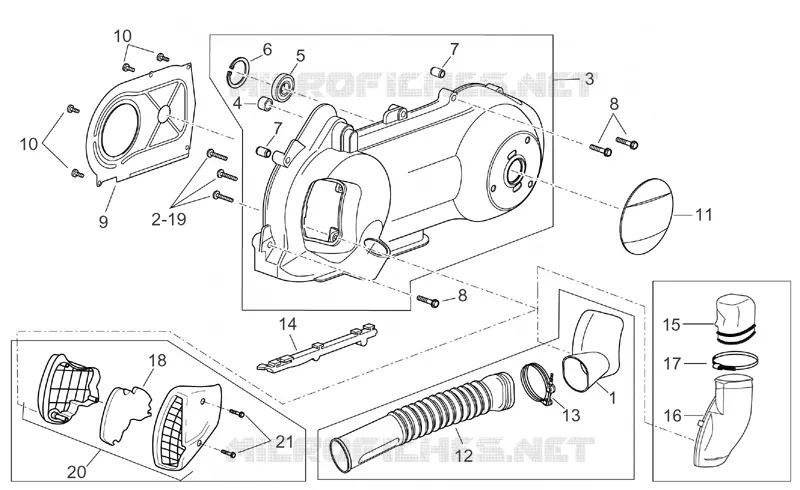

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
