Engine displacement
250
2
Model
ATLANTIC
3
Year
2005
4
Trim
Atlantic
5
Parts Catalog
Crankshaft assy
6
Parts Diagram
Parts Catalog
Crankcase
by
RH controls
Crankshaft assy
1
2
3
4
4
4
4
5
5
5
5
5
5
6
7
7
7
7
8
8
9
9
10
11
12
13
14
15
16
1
Frame coupling rod
AP8146548
£121,12 Unit Price incl. VAT
2
Engine connecting element
AP8146898
Not Available
2
Engine connecting element
AP8146547
Not Available
3
Rod bush
AP8121561
£39,96 Unit Price incl. VAT
4
Low self-locking nut M12*
AP8150432
£2,18 Unit Price incl. VAT
5
Washer 12,2x22x2
AP8152018
£9,28 Unit Price incl. VAT
6
Connecting rod pivot pin
AP8121627
£37,87 Unit Price incl. VAT
7
Resin bush
AP8102538
Not Available
8
Silent-block
AP8144598
Not Available
9
Hex socket screw M12x98*
AP8150345
£17,60 Unit Price incl. VAT
10
Spacer
AP8121628
£28,30 Unit Price incl. VAT
11
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
12
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
13
Frame pivot pin
AP8121528
£25,94 Unit Price incl. VAT
14
Rod bush
AP8121562
£32,14 Unit Price incl. VAT
15
Engine pivot pin
AP8121598
£49,19 Unit Price incl. VAT
16
Anti-theft pin
AP8146752
Not Available

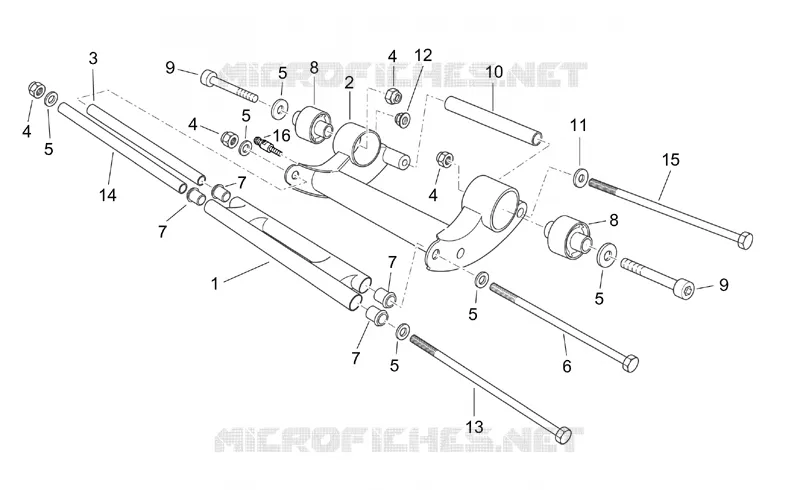

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
