Engine displacement
250
2
Model
ATLANTIC
3
Year
2005
4
Trim
Atlantic
5
Parts Catalog
Exhaust unit
6
Parts Diagram
Parts Catalog
Chain tensioner
by
Rear brake caliper
Exhaust unit
1
2
3
4
5
6
7
8
9
10
11
11
11
12
13
13
13
14
14
15
15
15
16
17
1
Exhaust pipe protection
AP8119819
Not Available
1
Exhaust pipe protection
AP8119623
Not Available
2
Manifold
AP8119760
Not Available
2
Manifold
AP8119820
Not Available
2
Manifold
AP8119763
Not Available
3
Hose clamp
AP8119734
£22,76 Unit Price incl. VAT
4
Bushing
AP8119739
£36,29 Unit Price incl. VAT
5
Silencer
AP8119789
Not Available
5
Silencer
AP8119830
£265,36 Unit Price incl. VAT
5
Silencer
AP8119761
Not Available
6
Exhaust pipe gasket
AP8580066
Not Available
7
Nut
AP8121419
Not Available
8
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
9
Stainless washer 16x8.4x1.6
AP8163165
£1,88 Unit Price incl. VAT
10
Washer 15x5,5X1,2
AP8150382
£1,88 Unit Price incl. VAT
11
Hex socket screw M8x50
AP8150277
£1,94 Unit Price incl. VAT
12
Insulating washer 20x8x1.5
AP8163167
£1,44 Unit Price incl. VAT
13
Nut
AP8152350
£1,26 Unit Price incl. VAT
14
T bush *
AP8121114
£4,49 Unit Price incl. VAT
15
Washer
AP8150018
£1,88 Unit Price incl. VAT
16
Bushing 5,3x8x7,1
AP8221036
£0,73 Unit Price incl. VAT
17
Rubber spacer
AP8144593
£2,35 Unit Price incl. VAT

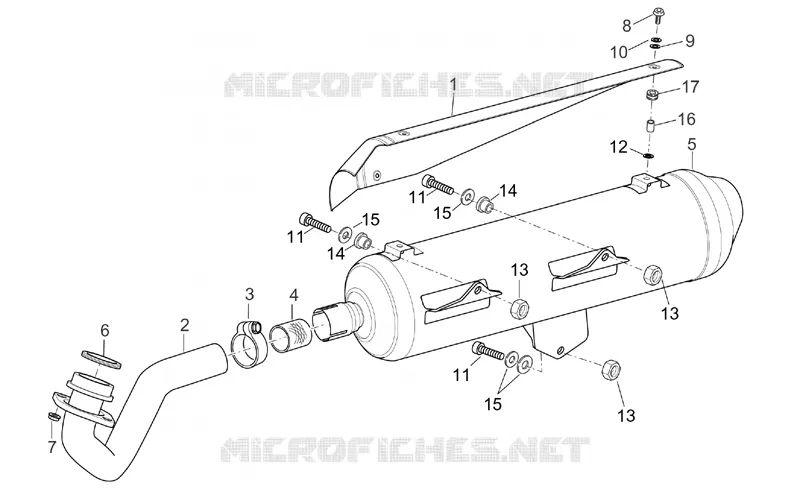

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
