Engine displacement
250
2
Model
ATLANTIC
3
Year
2005
4
Trim
Atlantic
5
Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Acc. - Top/cases I
by
Fron fork II
Air box
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Hex socket screw M6x50
AP8150202
£2,17 Unit Price incl. VAT
2
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
3
Air box cpl.
AP8178620
Not Available
3
Air box cpl.
AP8168214
Not Available
4
Protection
AP8168515
Not Available
5
Hose clamp 40-60 h9
AP8121639
Not Available
6
Screw w/ flange M6x35
AP8152282
£1,27 Unit Price incl. VAT
7
Hose clamp
AP8121621
Not Available
8
Bush
AP8121032
£3,88 Unit Price incl. VAT
9
Bushing
AP8580183
Not Available
10
Hose clamp
AP8580219
Not Available
11
Bushing
AP8580184
Not Available
12
Carburettor-air box hose
AP8580147
Not Available
13
Air filter
AP8580172
Not Available
14
Air filter housing seal
AP8580173
Not Available
15
Air intake hose
AP8580178
Not Available
16
Self-tap screw 3x20
AP8580061
Not Available
17
Hose clamp
AP8580181
Not Available
18
Washer 6,4x15x1
AP8152181
£0,24 Unit Price incl. VAT
19
Cable-guide
AP8121882
£6,35 Unit Price incl. VAT
20
Joint
AP8144638
Not Available
21
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
22
Rubber spacer
AP8102504
£2,52 Unit Price incl. VAT
23
Protection
AP8178550
Not Available
24
Cover
AP8178822
£9,88 Unit Price incl. VAT
25
Intake manifold extension
AP8580248
Not Available
26
Ring
AP8580249
Not Available
27
Hex socket screw M6x70
AP8150342
£1,33 Unit Price incl. VAT
28
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT

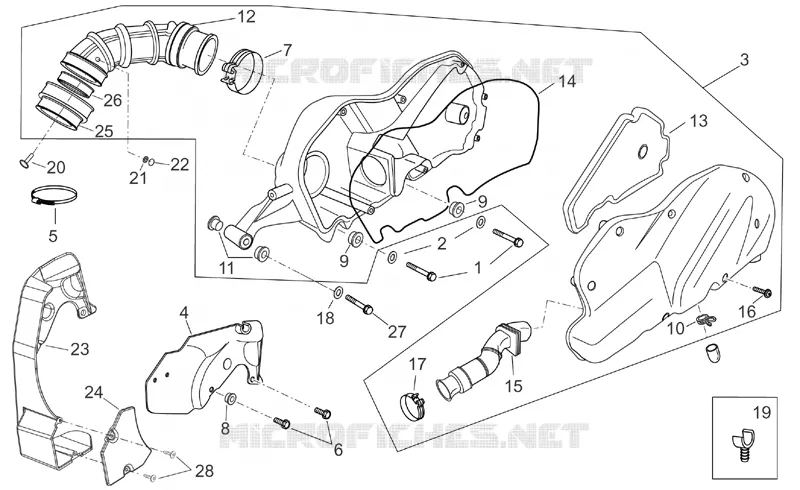

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
