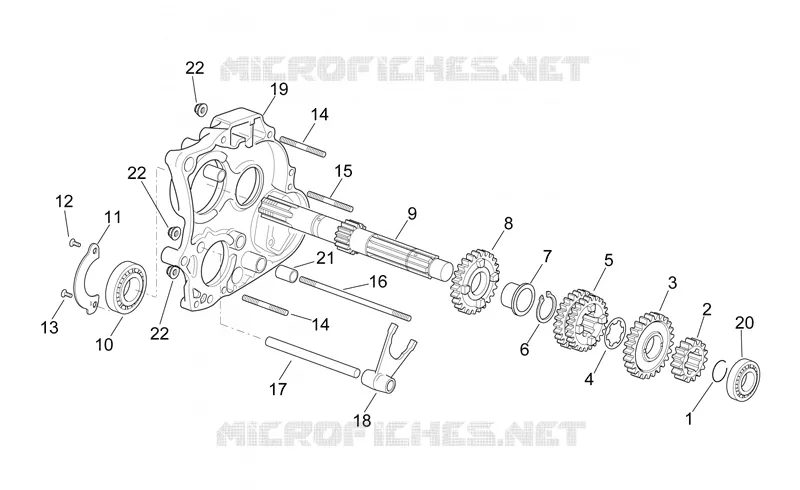

Primary gear shaft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
22
22
1
Circlip
AP8600292
Not Available
2
2nd pinion gear
AP8600288
Not Available
3
6th pinion gear
AP8600291
Not Available
4
Washer
AP8600294
Not Available
5
3rd-4th pinion gear
AP8600289
Not Available
6
Snap ring
AP8600295
Not Available
7
Bush
AP8600293
Not Available
8
5th pinion gear
AP8600290
Not Available
9
Primary gear shaft
AP8600287
Not Available
10
Bearing 20x52x15
AP8600296
£103,22 Unit Price incl. VAT
11
Check bearing plate
AP8600410
Not Available
12
screw M6x16
AP8600412
Not Available
13
screw M6x16
AP8600412
Not Available
14
Stud bolt
AP8600073
Not Available
15
Stud bolt
AP8600074
Not Available
16
Stud bolt l=90
AP8600072
Not Available
17
Fork shaft
AP8600331
Not Available
18
Fork n3
AP8600329
Not Available
19
Gearbox cover
AP8600408
Not Available
20
Bearing 17x40x12
AP8600297
Not Available
21
Pin
AP8600075
Not Available
22
Nut
AP8600076
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
