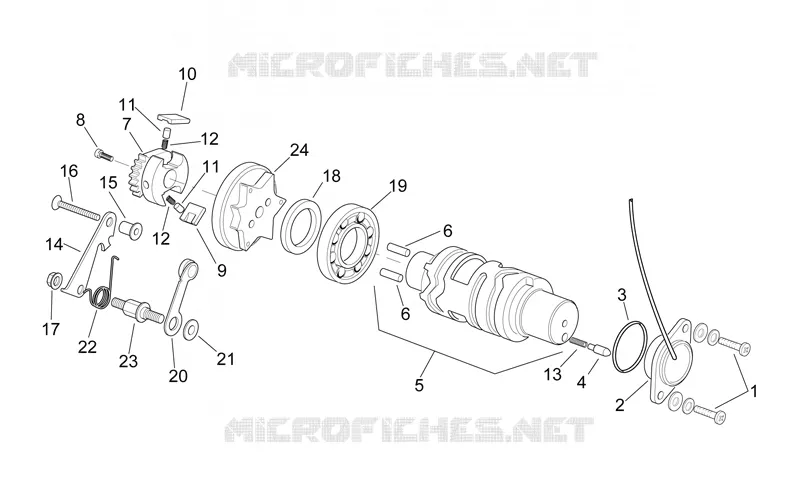

Gear control assembly II
1
2
3
4
5
6
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
1
screw
AP8600360
Not Available
2
Neutral indicator switch+seal
AP8600358
Not Available
3
O-ring
AP8600359
Not Available
4
Pin
AP8600361
£10,42 Unit Price incl. VAT
5
Shift cam
AP8600332
Not Available
6
Shift cam pin
AP8600333
Not Available
7
Shift cam gear
AP8600406
Not Available
8
Shift cam gear pin
AP8600335
Not Available
9
Shift cam n1 plate
AP8600336
Not Available
10
Shift cam n2 plate
AP8600337
Not Available
11
Roller
AP8600338
Not Available
12
Spring
AP8600339
Not Available
13
Spring
AP8600362
Not Available
14
Shift cam guide plate
AP8600341
Not Available
15
Spacer 6,1x10x16
AP8600342
Not Available
16
screw
AP8600343
Not Available
17
Nut M6
AP8600071
Not Available
18
Washer 25x32x3
AP8600344
Not Available
19
Bearing 25x47x8
AP8600345
Not Available
20
Shift cam lock plate
AP8600346
Not Available
21
Washer
AP8600347
Not Available
22
Spring
AP8600348
Not Available
23
Maintenance
AP8600349
Not Available
24
Shift cam star
AP8600350
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
