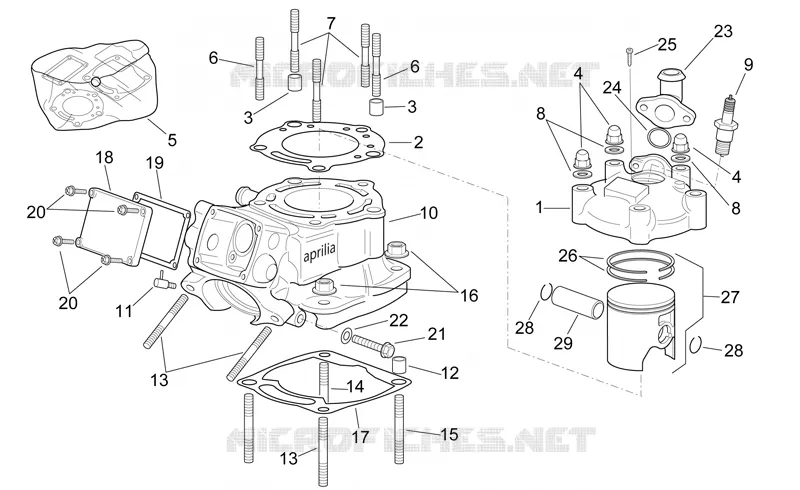

Vertical cylinder assembly
1
2
3
3
4
4
5
6
6
7
8
8
9
10
11
12
13
13
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
28
29
1
Cylinder head
AP8600001
Not Available
2
Cylinder head gasket
AP8600002
Not Available
3
Pin
AP8600003
Not Available
4
Nut
AP8600004
Not Available
5
Gasket set
AP8600026
Not Available
6
Stud bolt l=51
AP8600005
Not Available
7
Stud bolt l=45
AP8600006
Not Available
8
Washer
AP8600007
Not Available
9
Spark plug BR9ECM
AP8600008
Not Available
10
Cylinder
AP8600010
Not Available
11
Oil inlet union
AP8600011
Not Available
12
Pin
AP8600012
Not Available
13
Stud bolt l=30
AP8600013
Not Available
14
Stud bolt l=35
AP8600014
Not Available
15
Stud bolt l=40
AP8600015
Not Available
16
Nut
AP8600016
Not Available
17
Cylinder base gasket
AP8600017
£63,16 Unit Price incl. VAT
18
Valve seat cover
AP8600018
Not Available
19
Valve cover gasket
AP8600019
Not Available
20
screw
AP8600020
Not Available
21
Water unload screw
AP8600021
Not Available
22
Washer
AP8600022
Not Available
23
Water outlet union
AP8600023
Not Available
24
O-ring
AP8600024
£12,08 Unit Price incl. VAT
25
screw
AP8600025
Not Available
26
Piston ring set
AP8600128
Not Available
27
Piston assy
AP8600409
Not Available
28
Snap ring
AP8600130
£11,27 Unit Price incl. VAT
29
Piston pin
AP8600129
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
