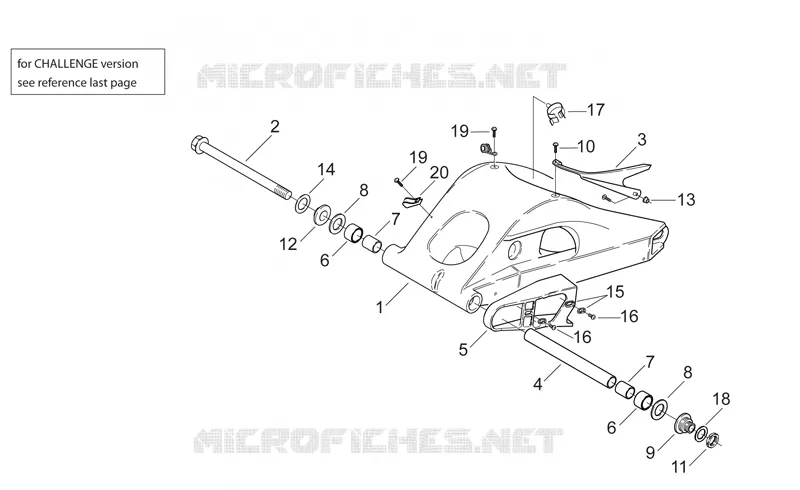

Swing arm
1
2
3
4
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
16
17
18
19
19
20
1
Swing arm
AP8135803
Not Available
2
Rear swing arm pin
AP8125651
Not Available
3
Chain guard
AP8131925
Not Available
4
Rear swin.arm pin sp.
AP8121923
£14,06 Unit Price incl. VAT
5
Chain guide plate
AP8120846
Not Available
6
Needle bearing 25x32x24
AP8110070
Not Available
7
Rear sw.arm piv.bush
AP8121884
£38,72 Unit Price incl. VAT
8
Washer
AP8120872
Not Available
9
Adjustment bush
AP8121899
Not Available
10
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
11
Ring nut M20x1
AP8121898
Not Available
12
Clearance bush
AP8121925
Not Available
13
Rubber w/ insert
AP8120531
£6,84 Unit Price incl. VAT
14
Curved spring washer
AP8102429
Not Available
15
Cup for shoe
AP8234020
£2,17 Unit Price incl. VAT
16
Hex socket screw M5x16
AP8152268
£1,88 Unit Price incl. VAT
17
Cable-guide
AP8134186
£0,86 Unit Price incl. VAT
18
Washer 21x37x3
AP8152089
Not Available
19
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
20
Black hose D12*
AP8102151
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
