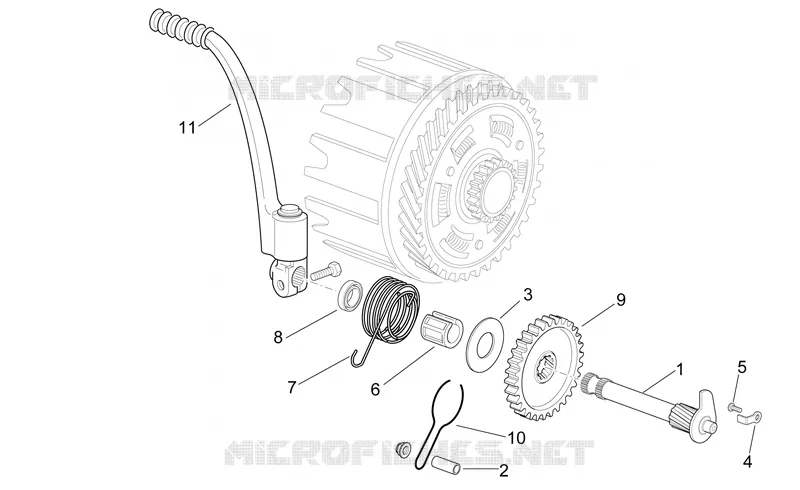

Starter assembly
1
2
3
4
5
6
7
8
9
10
11
1
Starting shaft
AP8600364
Not Available
2
Spacer 6,5x10,5x22,5
AP8600365
Not Available
3
Clearance washer
AP8600366
Not Available
4
Lock plate
AP8600407
Not Available
5
screw
AP8600316
Not Available
6
Kick starter spring guide
AP8600368
Not Available
7
Kickstarter spring
AP8600369
Not Available
8
Oil seal 16x24x5
AP8600370
Not Available
9
Kick starter gear
AP8600371
Not Available
10
Kick starter spring lock
AP8600372
Not Available
11
Starter lever cpl.
AP8106273
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
