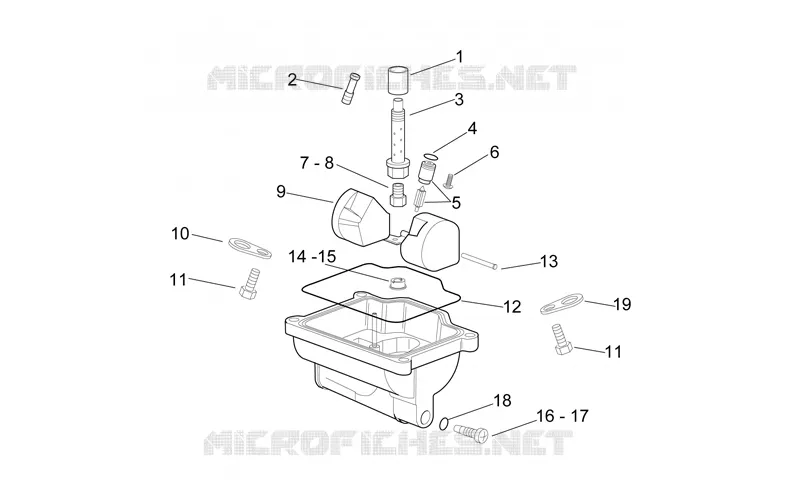

Carburettor III
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
1
Ring
AP8600177
Not Available
2
Idle jet 20
AP8106342
Not Available
2
Idle jet 27,5
AP8600145
Not Available
3
Needle valve 0-8
AP8600146
Not Available
3
Needle valve 0-9
AP8106341
Not Available
4
O-ring
AP8600150
Not Available
5
Needle valve
AP8600149
Not Available
6
screw
AP8600151
Not Available
7
Main jet LH 270
AP8600147
Not Available
8
Main jet RH 280
AP8600148
Not Available
9
Float
AP8600152
Not Available
10
Plate
AP8600159
Not Available
11
screw
AP8600137
Not Available
12
Float chamber gasket
AP8600156
Not Available
13
Float pin
AP8600153
Not Available
14
Power jet LH (55)
AP8600154
Not Available
15
Power jet RH (35)
AP8600155
Not Available
16
Unload screw LH
AP8600161
Not Available
17
Unload screw RH
AP8600162
Not Available
18
O-ring
AP8600163
Not Available
19
Plate
AP8600160
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
