Engine displacement
300
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Saddle and helmet compartment
6
Parts Diagram
Parts Catalog
Central body - Tunnel
by
Rear body - Rear fairing
Saddle and helmet compartment
1
2
3
4
5
6
7
8
9
10
10
11
12
12
12
13
14
15
16
17
18
18
19
1
Saddle, black
AP8129435
Not Available
1
Saddle, beige/red
AP8129381
Not Available
1
Saddle, grey
AP8129327
Not Available
1
Saddle, grey
AP8129434
Not Available
1
Saddle, black/grey
AP8129380
Not Available
2
Helmet compartment, black
AP8139318
Not Available
3
Saddle spin
AP8221173
Not Available
4
Pillar hinge, grey
AP8158551
Not Available
4
Pillar hinge, blue
AP8178307
Not Available
4
Pillar hinge, grey
AP8168659
Not Available
4
Pillar hinge, red
AP8168677
Not Available
4
Pillar hinge, black
AP8149997
Not Available
4
Pillar hinge, red
AP8158700
Not Available
4
Pillar hinge, blue
AP8158518
Not Available
5
Split pin
AP8201643
£3,43 Unit Price incl. VAT
6
Washer 6,4x12,5*
AP8150014
£1,27 Unit Price incl. VAT
7
Saddle closing plate
AP8102947
£39,55 Unit Price incl. VAT
8
Lock cable 210 mm
AP8102948
Not Available
9
Saddle lock
AP8102949
Not Available
10
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
11
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
12
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
13
Toolkit
AP8102964
Not Available
14
Inspection cover, black
AP8139433
Not Available
15
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
16
Gasket
AP8144186
Not Available
17
Screw clip D5,5*
AP8201763
£1,85 Unit Price incl. VAT
18
Front saddle support rubber
AP8144089
£9,71 Unit Price incl. VAT
19
Rubber spacer
AP8144087
£8,65 Unit Price incl. VAT

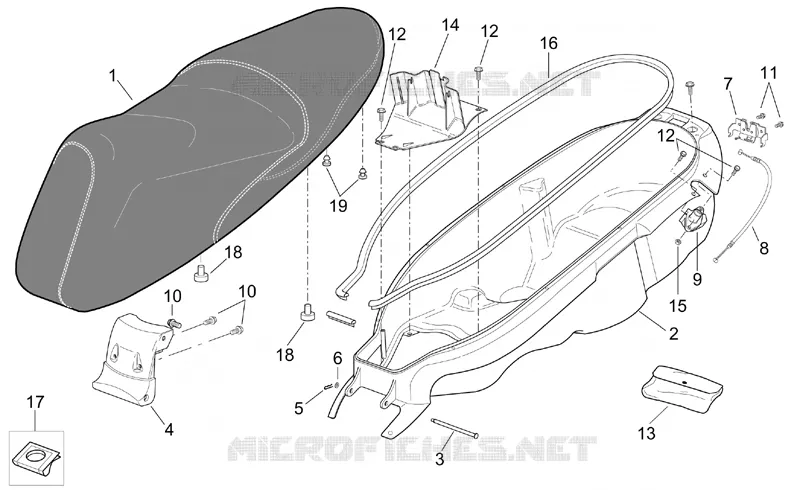

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
