1
Engine displacement
300
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Carburettor III
by
Crank-case
Engine
1
2
3
4
5
6
7
7
8
8
9
9
10
10
11
1
Variator carter cover
AP8168123
£30,41 Unit Price incl. VAT
2
Variator air intake
AP8168124
Not Available
3
Variator filter support
AP8134524
£21,10 Unit Price incl. VAT
4
Variator cooling filter
AP8102863
Not Available
5
Gasket D4
AP8120593
Not Available
6
Engine 250 h20
AP8176038
Not Available
6
Engine 300
AP8176084
Not Available
6
Engine 250 h20
AP8106973
Not Available
7
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
8
Spacer
AP8120253
£1,66 Unit Price incl. VAT
9
T bush
AP8121795
£2,63 Unit Price incl. VAT
10
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
11
Gasket set
AP8552014
Not Available

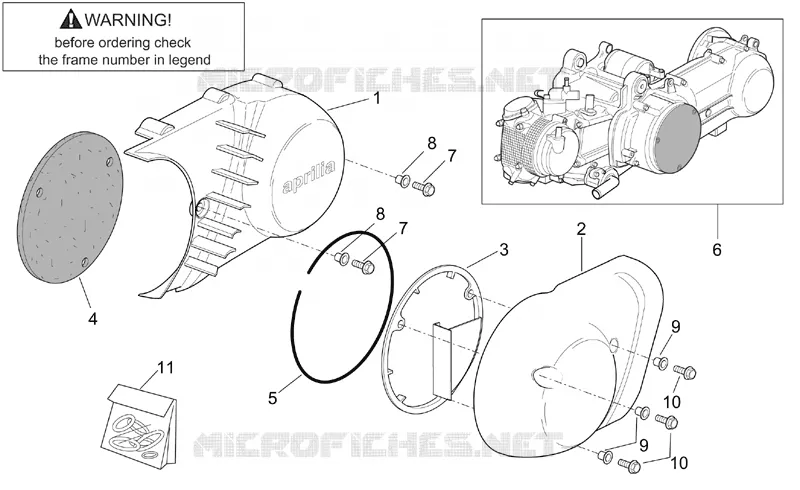

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
