Engine displacement
300
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Electrical system II
6
Parts Diagram
Parts Catalog
Electrical system I
by
Plate set-decal-op.handbooks
Electrical system II
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
1
Battery
AP8112920
£115,06 Unit Price incl. VAT
2
Battery cover, black
AP8139491
Not Available
3
Voltage regulator
AP8112941
£102,94 Unit Price incl. VAT
4
ECU
AP8127483
Not Available
4
ECU
AP8127569
Not Available
4
ECU
AP8127383
Not Available
5
Starter relay 12V-150A
AP8124636
Not Available
6
Microswitch
AP8124624
£51,88 Unit Price incl. VAT
7
Fuse 20A
AP8112506
Not Available
8
Fuse 15A
AP8112176
Not Available
9
Fuse 7,5A
AP8112244
Not Available
10
Rubber fuse box
AP8120754
£10,61 Unit Price incl. VAT
11
Rubber fuse box
AP8144091
Not Available
12
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
13
HT coil
AP8124626
Not Available
13
HT coil
AP8127484
Not Available
14
Sparkplug cap
AP8124627
Not Available
15
Taillight wiring harn.
AP8124594
Not Available
16
Thermistor
AP8212708
£61,66 Unit Price incl. VAT
17
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
18
Spring washer 6,4x11x0,5*
AP8150429
Not Available
19
Hex socket screw M5x20
AP8150252
£0,48 Unit Price incl. VAT
20
Olio window device
AP8127397
Not Available
21
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
22
TPS connector
AP8127485
Not Available

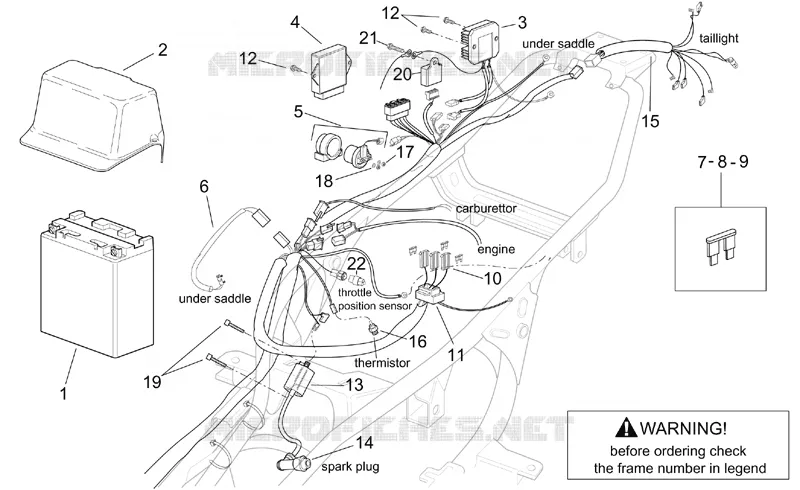

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
