Engine displacement
300
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Fuel level sensor
6
Parts Diagram
Parts Catalog
Water cooler
by
Fuel tank
Fuel level sensor
1
2
3
4
5
6
7
7
7
7
8
9
9
9
9
9
1
Fuel filler cap
AP8144782
£17,44 Unit Price incl. VAT
2
Fuel level sensor
AP8124536
Not Available
3
Fuel tank flange
AP8102736
Not Available
4
Fuel collector rubber
AP8220465
£18,22 Unit Price incl. VAT
5
2-way union
AP8101944
£5,48 Unit Price incl. VAT
6
Fuel gun lock
AP8102733
Not Available
7
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
8
Pipe, grey 3x8
AP8120955
£18,10 Unit Price incl. VAT
9
Self-locking nut M5
AP8152306
Not Available

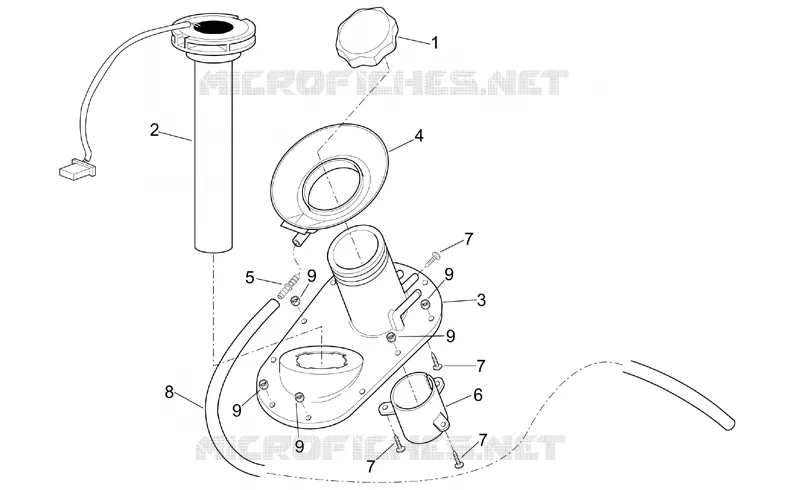

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
