1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000 SP
5
Parts Catalog
Swing arm
6
Parts Diagram
Parts Catalog
Front fork
by
Connecting rod - rear shock abs.
Swing arm
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
30
31
32
1
Ball bearing
AP8110079
£28,38 Unit Price incl. VAT
2
Rear swing arm pin
AP8146154
Not Available
3
RH chain guide plate
AP8120985
Not Available
4
LH chain guide plate
AP8120986
£22,96 Unit Price incl. VAT
5
Adjustment bush
AP8121345
Not Available
6
Swing arm ring nut
AP8121201
£29,36 Unit Price incl. VAT
7
Internal spacer
AP8121202
£46,67 Unit Price incl. VAT
8
Rear int.sw.arm piv.bush
AP8121349
Not Available
9
Rear stand bush
AP8121890
£4,01 Unit Price incl. VAT
10
Swing arm
AP8135918
Not Available
11
Roller cage
AP8110078
£11,72 Unit Price incl. VAT
12
Gasket ring
AP8144006
£13,28 Unit Price incl. VAT
13
Rear wheel spindle nut
AP8125763
£16,00 Unit Price incl. VAT
14
O-ring 134
AP8144048
£1,27 Unit Price incl. VAT
15
Inside circlip d37
AP8121204
£1,27 Unit Price incl. VAT
16
Gasket ring
AP8144005
£13,28 Unit Price incl. VAT
17
Wheel pin washer
AP8125687
£1,27 Unit Price incl. VAT
18
Screw M6x40
AP8150468
£1,27 Unit Price incl. VAT
19
Nut M8
AP8150334
Not Available
20
Chain tens.adjuster screw
AP8152305
£13,28 Unit Price incl. VAT
21
Threaded rivet
AP8201755
£6,38 Unit Price incl. VAT
22
Chain guide plate
AP8120995
Not Available
23
Chain guard, carb.
AP8139344
Not Available
24
Cup for shoe
AP8234020
£2,17 Unit Price incl. VAT
25
Screw w/ flange M5x12
AP8152302
Not Available
26
Hex socket screw M5x12
AP8152267
£2,36 Unit Price incl. VAT
27
Adhesive sponge
AP8117033
£8,10 Unit Price incl. VAT
28
RH swing arm insert
AP8121276
Not Available
29
Rear swin.arm pin sp.
AP8121348
Not Available
30
LH swing arm insert
AP8121277
Not Available
31
Chain guide plate
AP8144284
£40,63 Unit Price incl. VAT
32
T bush *
AP8121075
£1,96 Unit Price incl. VAT

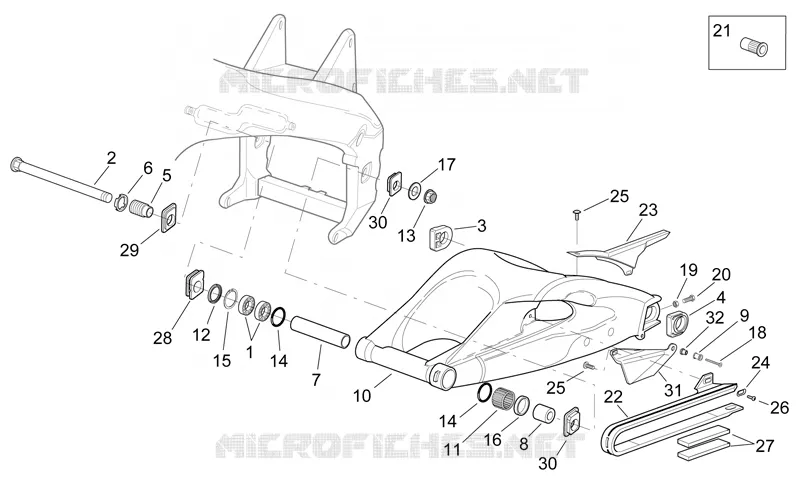

Find the detailed Swing arm APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
