1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000 SP
5
Parts Catalog
Throttle body
6
Parts Diagram
Parts Catalog
Ignition unit
by
Sealing and lubricating agents
Throttle body
1
2
2
2
2
2
2
2
2
2
2
2
2
2
3
4
5
6
6
7
7
7
8
9
9
10
11
12
13
1
Throttle body cpl.
AP0295690
Not Available
2
Throttle body revision kit
AP0281240
Not Available
3
Sensor pipe 110mm
AP0960122
Not Available
4
Throttle cable supp.plate cpl.
AP0661010
Not Available
5
Throttle body sensor
AP0274030
Not Available
6
Injection valve cpl.
AP0274010
Not Available
7
Gasket set
AP0296180
Not Available
8
Fuel pressure regulator
AP0274020
Not Available
9
Sensor pipe 95 mm
AP0960111
Not Available
10
3-way union
AP0874320
Not Available
11
Sensor pipe 30 mm
AP0960121
£11,28 Unit Price incl. VAT
12
Pressure sensor
AP0274050
Not Available
13
O-ring 2018
AP8120965
£1,06 Unit Price incl. VAT

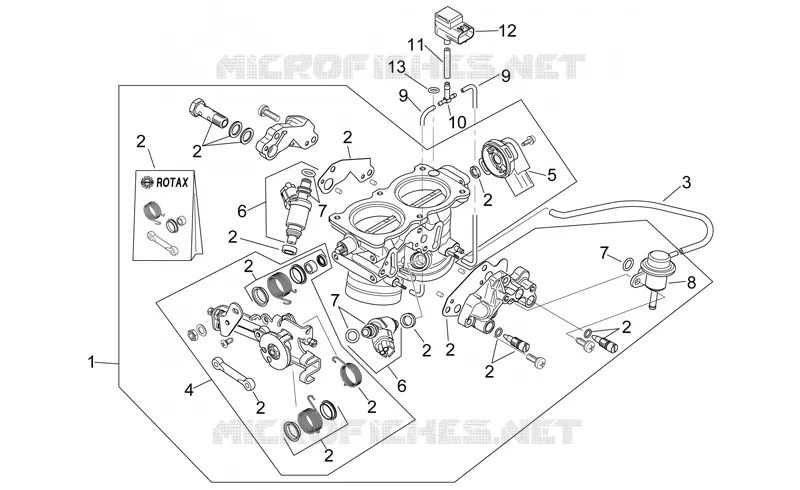

Find the detailed Throttle body APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
