Parts Catalog
Rear electrical system
6
Parts Diagram
Parts Catalog
Central electrical system
by
Lock hardware kit
Rear electrical system
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
1
Terminal cap
AP8120218
£4,01 Unit Price incl. VAT
2
Adhesive sponge
AP8117033
£8,10 Unit Price incl. VAT
3
Battery YTX12-BS
AP8124748
Not Available
4
Battery fixing plate
AP8148660
Not Available
5
Ground-battery lead
AP8124439
Not Available
6
Main wiring harness
AP8124548
Not Available
7
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
8
Inclination sensor
AP8124266
Not Available
9
Rubber sensor support
AP8144046
Not Available
10
ECU prot.box
AP8138776
Not Available
11
ECU box cover
AP8138596
£39,42 Unit Price incl. VAT
12
Relay 12V-150A
AP8112927
Not Available
13
Relay 12V-20A
AP8212469
Not Available
14
Diods
AP8124289
Not Available
15
Relay-starter motor cable
AP8124269
Not Available
16
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
17
Spring washer 6,4x11x0,5*
AP8150429
Not Available
18
Rubber spacer *
AP8220283
£2,39 Unit Price incl. VAT
19
Battery support rubber
AP8144045
£14,26 Unit Price incl. VAT
20
Fuse 30a
AP8124273
Not Available
21
Rubber fuse box
AP8112811
£11,53 Unit Price incl. VAT
22
Rubber fuse box
AP8120754
£10,61 Unit Price incl. VAT
23
Positive pole cap
AP8112940
£16,60 Unit Price incl. VAT
24
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
25
Washer 4,3x16*
AP8150159
£1,88 Unit Price incl. VAT
26
Rubber spacer
AP8220150
£3,13 Unit Price incl. VAT
27
ECU
AP0265670
Not Available

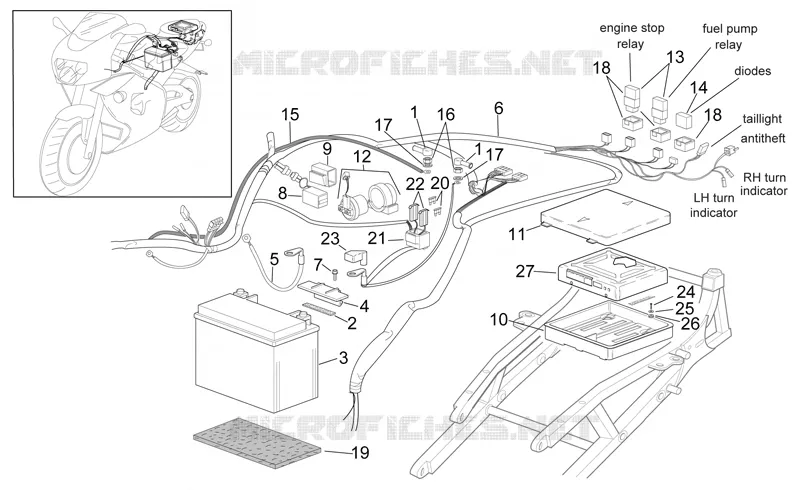

Find the detailed Rear electrical system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
