1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000 SP
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Front master cilinder
by
Water coolers
Cooling system
1
2
3
3
3
3
3
4
5
6
7
8
8
8
8
8
8
9
10
11
12
13
14
14
14
14
15
16
17
18
19
1
3-way union
AP8102431
£12,53 Unit Price incl. VAT
2
Aluminium washer
AP8121837
£1,86 Unit Price incl. VAT
3
Hose clamp
AP8104097
£3,42 Unit Price incl. VAT
4
Three-way manifold
AP8102677
Not Available
5
Tee union D20
AP8101916
Not Available
6
Water hose manifold/cooler
AP8120978
£31,70 Unit Price incl. VAT
7
Engine-manifold pipe
AP8120979
£12,40 Unit Price incl. VAT
8
Hose clip D23,5x8*
AP8101927
£3,77 Unit Price incl. VAT
9
Thermostat-pump pipe
AP8144033
£23,12 Unit Price incl. VAT
10
Thermostat-cooler pipe
AP8144034
£17,62 Unit Price incl. VAT
11
Union-manifold breather pipe
AP8144094
£15,08 Unit Price incl. VAT
12
Manifold-union breather pipe
AP8144093
£6,10 Unit Price incl. VAT
13
Manifold breather pipe
AP8144092
£21,34 Unit Price incl. VAT
14
White hose clip d.13x6
AP8102764
£3,25 Unit Price incl. VAT
15
Thermostat valve set
AP8102614
£59,99 Unit Price incl. VAT
16
Thermostat-engine pipe
AP8144229
Not Available
17
Thermal switch
AP8112939
Not Available
18
Three way manifold/joint
AP8144230
Not Available
19
Engine pipe/'T' joint
AP8144236
Not Available

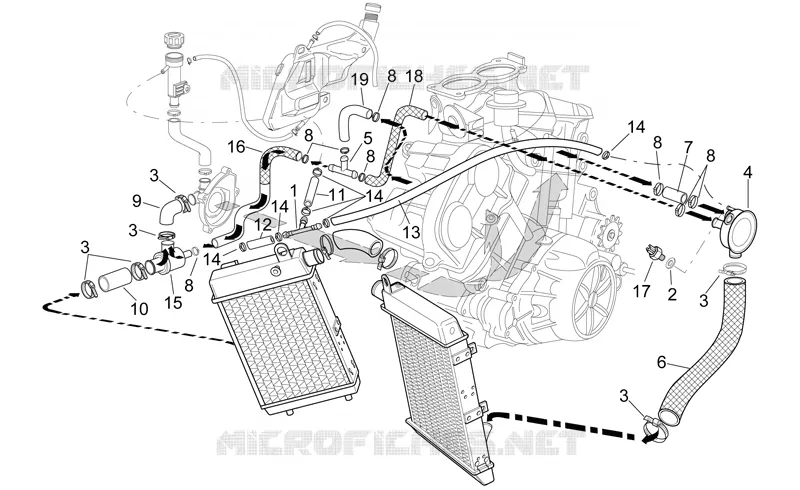

Find the detailed Cooling system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
