1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000 SP
5
Parts Catalog
Water coolers
6
Parts Diagram
Parts Catalog
Cooling system
by
Expansion tank
Water coolers
1
1
2
3
4
5
5
6
6
7
7
8
8
9
9
9
9
10
10
10
10
10
10
11
11
11
12
12
13
13
14
14
15
15
16
16
1
Hose clamp
AP8104097
£3,42 Unit Price incl. VAT
2
Water cooler, RH grey
AP8102612
Not Available
3
Water cooler, LH grey
AP8102613
Not Available
4
Water hose coolers
AP8120981
£21,41 Unit Price incl. VAT
5
Fan
AP8124335
Not Available
6
Washer 6,4x12*
AP8152184
£1,21 Unit Price incl. VAT
7
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
8
Hex socket screw M4x10
AP8152043
£1,88 Unit Price incl. VAT
9
Washer 4,3x12x1
AP8150011
£1,88 Unit Price incl. VAT
10
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
11
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
12
Rubber spacer
AP8112600
£3,13 Unit Price incl. VAT
13
T bush
AP8221023
£1,64 Unit Price incl. VAT
14
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
15
Silent-block
AP8101372
£1,88 Unit Price incl. VAT
16
Fan support
AP8134599
Not Available

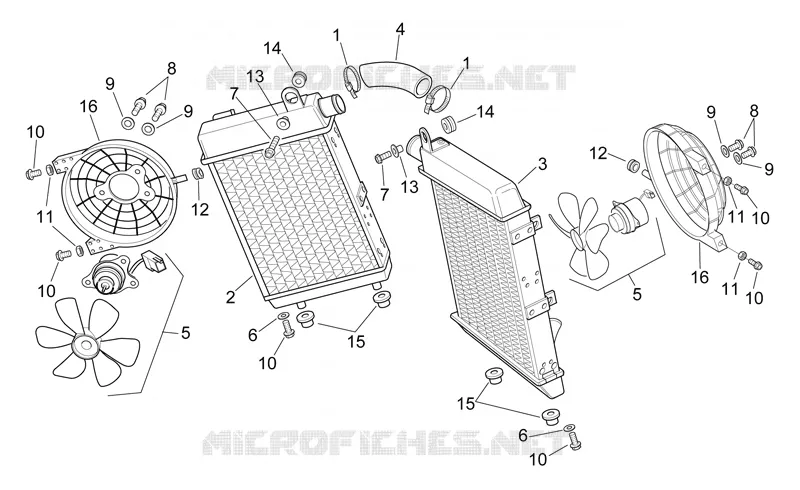

Find the detailed Water coolers APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
