Parts Catalog

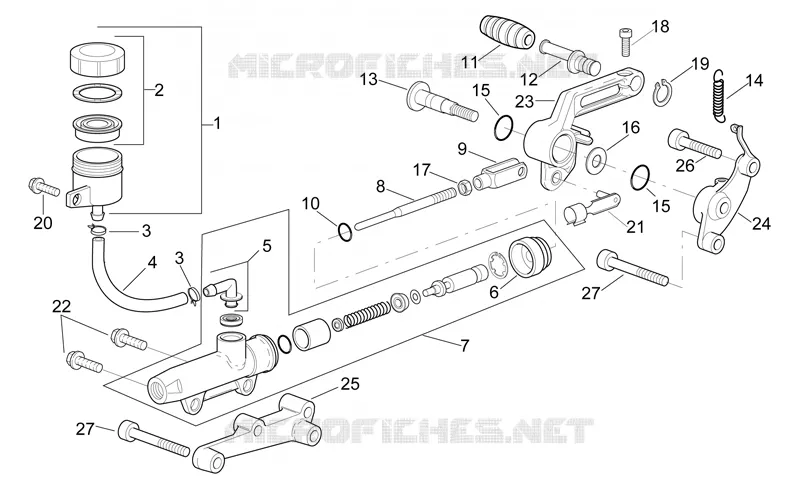

Rear master cylinder
6
Parts Diagram
Parts Catalog
Rear wheel
by
Rear brake caliper
Rear master cylinder
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
27
1
Brake oil tank complete
AP8113241
Not Available
2
Tank cap
AP8113553
£23,46 Unit Price incl. VAT
3
Hose clamp
AP8113764
Not Available
4
Rear brake hose
AP8113765
Not Available
5
Rear brake pump union
AP8213057
£28,61 Unit Price incl. VAT
6
Rubber bellows
AP8113288
£48,95 Unit Price incl. VAT
7
Rear master cylinder
AP8113324
Not Available
8
Master cylinder rod
AP8121222
£18,18 Unit Price incl. VAT
9
Fork
AP8101968
£16,72 Unit Price incl. VAT
10
O-ring OR112
AP8120178
£4,69 Unit Price incl. VAT
11
Lever rubber
AP8120912
£3,68 Unit Price incl. VAT
12
Brake lever pin
AP8121221
£22,68 Unit Price incl. VAT
13
Rear brake lever pin
AP8121223
Not Available
14
Rear brake lever spring
AP8121927
£15,10 Unit Price incl. VAT
15
O-ring 11,11x1,78
AP8144007
£1,39 Unit Price incl. VAT
16
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
17
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
18
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
19
Circlip d9
AP8150462
£1,39 Unit Price incl. VAT
20
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
21
Gear selector fork clips
AP8201301
£6,13 Unit Price incl. VAT
22
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
23
Rear brake lever
AP8135925
Not Available
24
Brake lever support
AP8134415
£71,92 Unit Price incl. VAT
25
Rear master cyl.support
AP8134384
£62,23 Unit Price incl. VAT
26
Hex socket screw M6x45
AP8150403
£1,94 Unit Price incl. VAT
27
Hex socket screw M8x50
AP8150277
£1,94 Unit Price incl. VAT

Find the detailed Rear master cylinder APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
