1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000 SP
5
Parts Catalog
Crankcases II
6
Parts Diagram
Parts Catalog
Crankcases I
by
Oil pump
Crankcases II
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
20
21
21
21
22
23
24
25
25
26
27
27
28
29
30
31
32
1
O-ring 11x2
AP0650925
Not Available
2
Plug screw m12x1,5
AP0241700
Not Available
3
Hex socket screw
AP0241932
Not Available
4
Ball bearing 6206
AP0932585
Not Available
5
Ball bearing 6304
AP0832144
Not Available
6
Bearing 6003
AP0232625
Not Available
7
Angular bearing 3206
AP0632124
Not Available
8
Ball bearing 6205
AP0932428
Not Available
9
Ball bearing 16101
AP0932335
Not Available
10
Short head screw
AP0241531
Not Available
11
Oil strainer
AP0256495
Not Available
12
Oilguide
AP0244340
Not Available
13
Oil sprayer pipe
AP0256527
Not Available
14
Gasket
AP0650970
Not Available
15
Oil seal 40x47x7,5
AP0850050
Not Available
16
Oil seal 12x28x7
AP0250450
Not Available
17
Oil seal 11x22x7
AP0650320
Not Available
18
Chain guide
AP0236370
Not Available
19
Clutch disengagement flange
AP0259500
Not Available
20
Hex socket screw M6x45
AP0241821
Not Available
21
Hex socket screw
AP0241261
Not Available
22
Hex socket screw M6x80
AP0241501
Not Available
23
Hex socket screw M6x25
AP0840861
Not Available
24
Jet 75
AP0268757
Not Available
25
Gasket ring 6x10
AP0230415
Not Available
26
Hex socket screw M6x10
AP0241081
£3,90 Unit Price incl. VAT
27
Gasket 12x18
AP0250015
Not Available
28
Magnetic drain plug M12x1,5
AP0241782
Not Available
29
Contact screw
AP0241852
Not Available
30
Oil filter
AP0256187
£18,77 Unit Price incl. VAT
31
Oil filter cover
AP0610090
Not Available
32
O-ring 59,52x2,62
AP0650500
Not Available

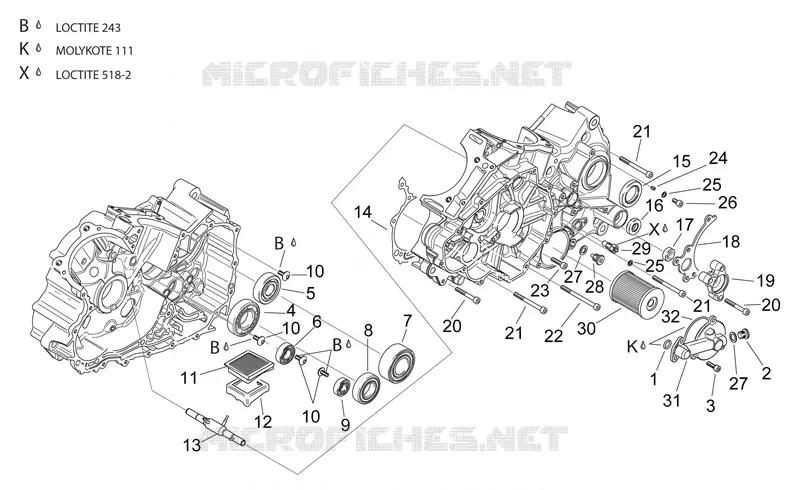

Find the detailed Crankcases II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
