1
Engine displacement
1000
2
Model
RSV
3
Year
1999
4
Trim
RSV 1000 SP
5
Parts Catalog
Gear box
6
Parts Diagram
Parts Catalog
Gear box selector
by
Clutch
Gear box
1
2
3
3
4
4
4
4
4
4
5
6
6
6
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Primary gear shaft assy.
AP0220390
Not Available
2
5th pinion gear
AP0634695
Not Available
3
Washer 29,2x33,5
AP0627120
£7,02 Unit Price incl. VAT
4
Circlip 28x2
AP0245815
Not Available
5
3rd-4th pinion gear
AP0634660
Not Available
6
Washer 25,35x34,5
AP0627132
Not Available
7
Roller cage 25x29x13
AP0632070
£30,92 Unit Price incl. VAT
8
6th pinion gear
AP0634710
Not Available
9
2nd pinion gear
AP0634640
Not Available
10
Driven shaft
AP0220400
Not Available
11
2nd wheel gear
AP0634655
Not Available
12
6th wheel gear
AP0634720
Not Available
13
4th wheel gear
AP0634670
Not Available
14
3rd wheel gear
AP0634680
Not Available
15
5th wheel gear
AP0634700
Not Available
16
Washer 25,3x33,5
AP0427106
£13,32 Unit Price incl. VAT
17
1st wheel gear
AP0634620
Not Available
18
Washer 20,5x37x1
AP0827110
Not Available
19
Gear box cpl.6 speed
AP0281222
Not Available

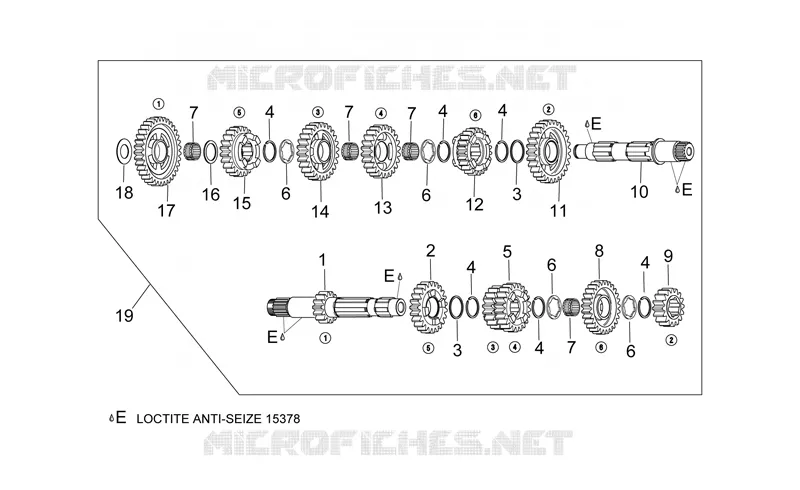

Find the detailed Gear box APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
