1
Engine displacement
900
2
Model
DORSODURO
3
Year
2019
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
STAND
6
Parts Diagram
Parts Catalog
FRONT LIGHTS
by
SPEEDOMETER
STAND
13
13
1
2
3
4
5
6
7
8
9
10
11
12
1
Lateral stand
858508
£245,62 Unit Price incl. VAT
2
Lateral stand plate
858509
£14,96 Unit Price incl. VAT
3
Stand pin
AP8161119
£30,08 Unit Price incl. VAT
4
Curved spring washer *
AP8150292
£1,88 Unit Price incl. VAT
5
Low nut M10x1,25
AP8152001
£2,63 Unit Price incl. VAT
6
Inner spring
AP9100669
£13,60 Unit Price incl. VAT
7
Outer spring
AP9100668
£13,60 Unit Price incl. VAT
8
Stand spring protection
AP8102524
£25,45 Unit Price incl. VAT
9
Lateral stand switch
AP8127856
Not Available
10
Hex socket screw M5x16
AP8150050
£1,88 Unit Price incl. VAT
11
Pin
860905
£14,65 Unit Price incl. VAT
12
Stand plate
858507
£224,48 Unit Price incl. VAT
13
Washer
AP8150018
£1,88 Unit Price incl. VAT

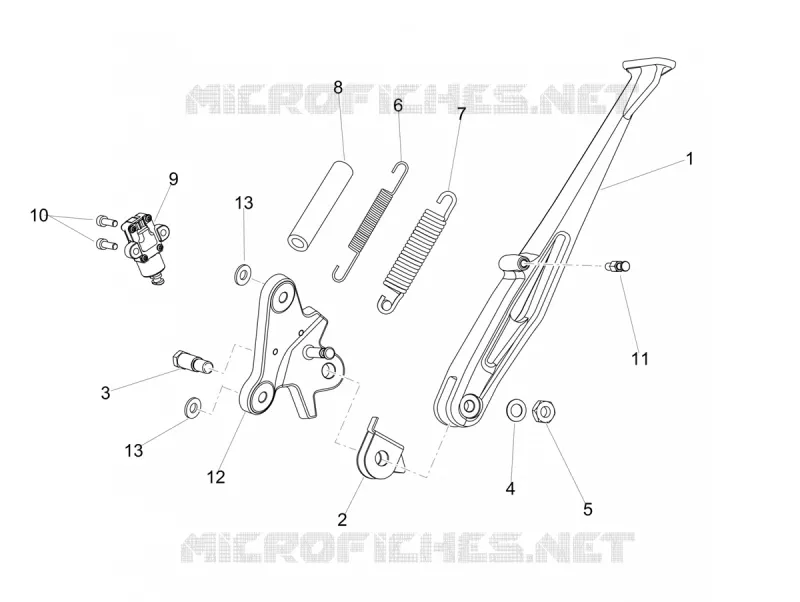

Find the detailed STAND APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
