1
Engine displacement
900
2
Model
DORSODURO
3
Year
2019
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
FUEL TANK
6
Parts Diagram
Parts Catalog
TAIL LIGHTS
by
FOOTRESTS
FUEL TANK
1
2
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Fuel tank
894921
Not Available
2
Hex socket screw M6x100
478171
£2,06 Unit Price incl. VAT
3
Washer 6,4x12,5*
AP8150014
£1,27 Unit Price incl. VAT
4
Fuel tank bush
AP8134419
£12,65 Unit Price incl. VAT
5
Rubber spacer
AP8123934
£4,75 Unit Price incl. VAT
6
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
7
Fuel tank gasket
890755
£33,77 Unit Price incl. VAT
8
Ring nut fuel filler cap
860237
£42,96 Unit Price incl. VAT
9
Hex socket screw M5x12
895709
£1,27 Unit Price incl. VAT
10
pipe 5x9
AP8220402
£28,99 Unit Price incl. VAT
11
Bride
2B004505
£14,96 Unit Price incl. VAT
12
O-ring 2018
AP8120965
£1,06 Unit Price incl. VAT
13
Fixing pin
AP8161127
£13,56 Unit Price incl. VAT
14
Washer 5x20x1,5
AP8150255
£0,98 Unit Price incl. VAT
15
Fuel pipe
2B004011
£48,70 Unit Price incl. VAT
16
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
17
Biadhesive
860447
£12,77 Unit Price incl. VAT
18
Insert
2B001203
£7,32 Unit Price incl. VAT
19
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
20
Pompe essence cpl.
2D000364
£597,61 Unit Price incl. VAT
21
Gasket
GU01107490
£63,04 Unit Price incl. VAT
22
Fuel filter
GU01106090
£81,40 Unit Price incl. VAT
23
Fuel level sensor
898261
£215,51 Unit Price incl. VAT
24
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT

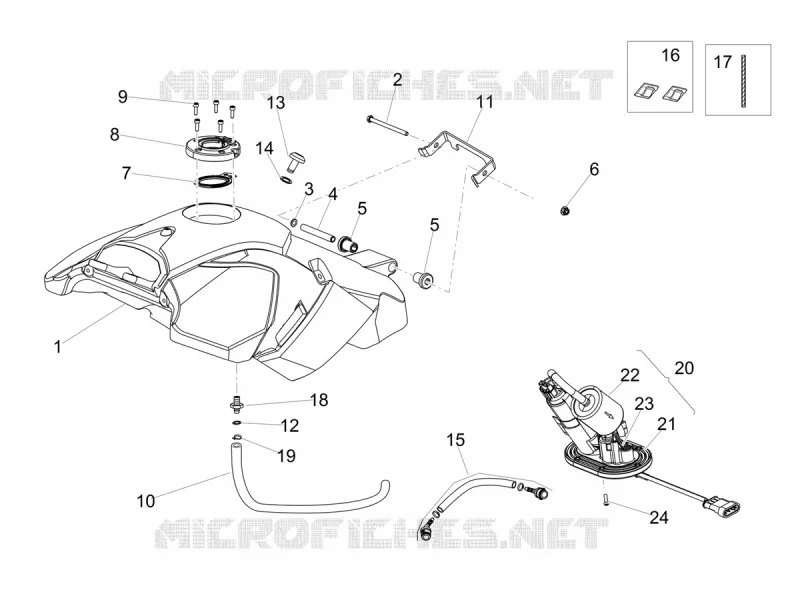

Find the detailed FUEL TANK APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
