1
Engine displacement
900
2
Model
DORSODURO
3
Year
2019
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
ENGINE - GEAR LEVER - SPROCKET
6
Parts Diagram
Parts Catalog
EXHAUST MUFFLER
by
CRANKCASES I
ENGINE - GEAR LEVER - SPROCKET
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
23
24
24
25
26
27
28
1
Moteur 900
CM1610025
£7 487,56 Unit Price incl. VAT
2
Pignon Z=15
2B004212
£44,30 Unit Price incl. VAT
3
Screw w/ flange M10x25
B043047
£3,73 Unit Price incl. VAT
4
Hex socket screw M8x12
AP8152055
£13,28 Unit Price incl. VAT
5
Cover
AP8102600
£0,61 Unit Price incl. VAT
6
Sprocket cover
856069
£15,31 Unit Price incl. VAT
7
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
8
T bush
AP8121811
£1,27 Unit Price incl. VAT
9
Plate
856079
£15,16 Unit Price incl. VAT
10
Gear lever
852480
£58,36 Unit Price incl. VAT
11
Gearbox linkage rod assy
859976
£59,83 Unit Price incl. VAT
12
RH ball joint M6
AP8210007
£15,91 Unit Price incl. VAT
13
Left ball joint M6
AP8110053
£16,18 Unit Price incl. VAT
14
Nut
AP8152138
£1,88 Unit Price incl. VAT
15
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
16
Gear lever
860402
£77,02 Unit Price incl. VAT
17
Brake lever pin
AP8121221
£22,68 Unit Price incl. VAT
18
Lever rubber
AP8120912
£3,68 Unit Price incl. VAT
19
Circlip d9
AP8150462
£1,39 Unit Price incl. VAT
20
Hex socket screw M6x16
AP8150137
£1,27 Unit Price incl. VAT
21
Hose clamp D 11,9
AP8201358
£0,60 Unit Price incl. VAT
22
Rear brake lever pin
AP8121223
Not Available
23
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
24
O-ring 11,11x1,78
AP8144007
£1,39 Unit Price incl. VAT
25
Cable-guide
AP8121889
£5,14 Unit Price incl. VAT
26
Cable-guide
AP8221114
£17,98 Unit Price incl. VAT
27
Belleville spring
2B002193
£1,49 Unit Price incl. VAT
28
T bushing
2B002191
£4,73 Unit Price incl. VAT

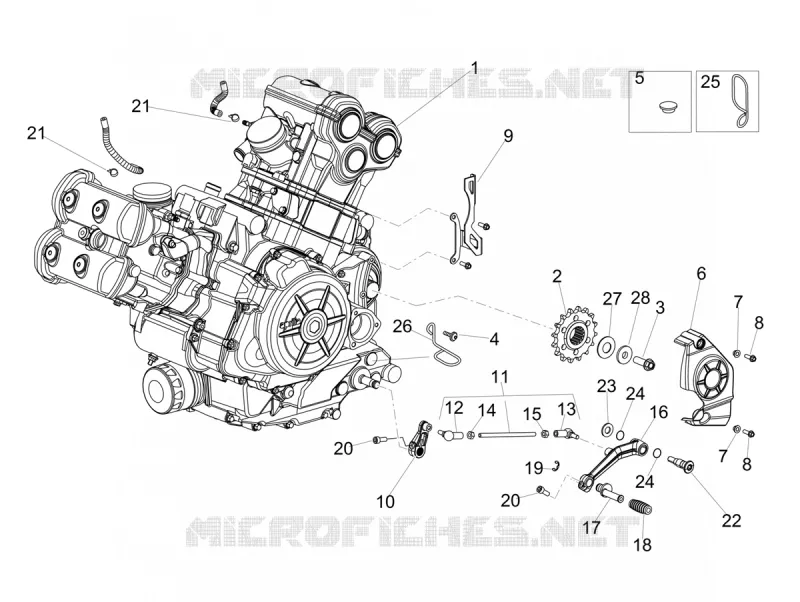

Find the detailed ENGINE - GEAR LEVER - SPROCKET APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
