1
Engine displacement
900
2
Model
DORSODURO
3
Year
2019
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
REAR FAIRINGS
6
Parts Diagram
Parts Catalog
SADDLE COMPARTMENT
by
LOCKS
REAR FAIRINGS
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
13
13
13
13
13
14
15
16
17
17
17
17
17
18
18
18
19
19
20
20
20
20
20
20
20
21
21
22
22
23
23
24
24
25
26
27
1
Queue car. p.noir mat
2H001996000NI
£331,74 Unit Price incl. VAT
2
Right silencer cover
B044370
£235,38 Unit Price incl. VAT
3
Left silencer cover
B044369
£235,38 Unit Price incl. VAT
4
Covers
B044244
£74,27 Unit Price incl. VAT
5
Number plate holder
856827
£36,92 Unit Price incl. VAT
6
Rubber spacer
AP8120001
£5,32 Unit Price incl. VAT
7
Hex socket screw M6x60
AP8150157
£1,27 Unit Price incl. VAT
8
Curved spring washer 6x12
658830
£0,95 Unit Price incl. VAT
9
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
10
T bush
AP8221023
£1,64 Unit Price incl. VAT
11
Clip M6
AP8102376
Not Available
12
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
13
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
14
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
15
RH Guard decal
860931
£7,33 Unit Price incl. VAT
16
LH Guard decal
860932
£7,33 Unit Price incl. VAT
17
Rubber spacer
AP8120712
£1,60 Unit Price incl. VAT
18
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
19
T bush
AP8221341
£5,87 Unit Price incl. VAT
20
T bush
AP8221340
£5,27 Unit Price incl. VAT
21
Hex socket screw M6x20
AP8224470
£1,27 Unit Price incl. VAT
22
Hex socket screw M6x30
AP8152128
£1,88 Unit Price incl. VAT
23
T bush
860331
£15,16 Unit Price incl. VAT
24
Washer 6,6x18*
AP8150179
£1,27 Unit Price incl. VAT
25
Right heat shield
899367
£21,01 Unit Price incl. VAT
26
Left heat shield
899368
£21,01 Unit Price incl. VAT
27
Brake hose hanger
AP8134167
£18,38 Unit Price incl. VAT

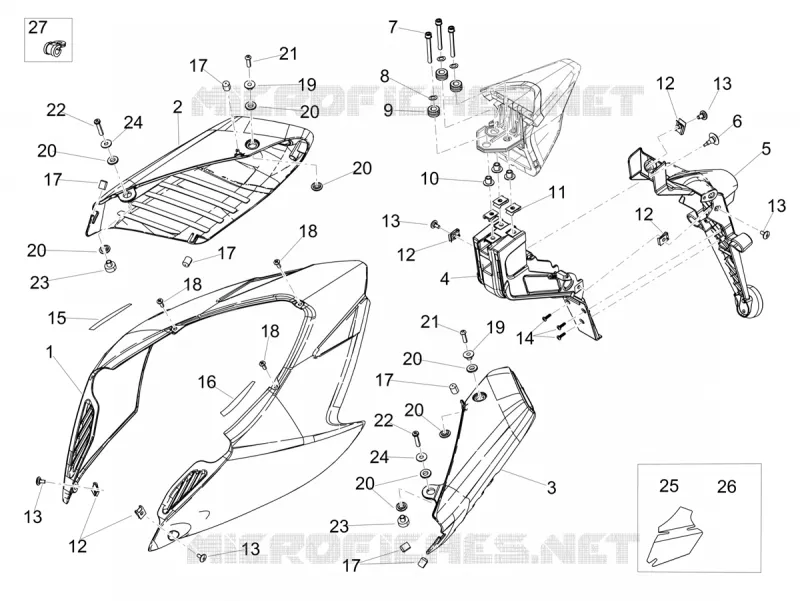

Find the detailed REAR FAIRINGS APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
