Parts Catalog
REAR ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
FRONT ELECTRICAL SYSTEM
by
REAR BRAKE CALIPER
REAR ELECTRICAL SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Centrale injection électronique
CM281706
£837,01 Unit Price incl. VAT
2
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
3
Horn
854830
£68,33 Unit Price incl. VAT
4
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
5
Taillight wiring harn.
856843
£73,42 Unit Price incl. VAT
6
Earth cable
859967
£23,64 Unit Price incl. VAT
7
Battery PTX12-BS 12V-10Ah (Piaggio)
1R000318
£96,11 Unit Price incl. VAT
7
Battery (Yuasa) 12V-10Ah
583158
£132,76 Unit Price incl. VAT
8
Battery adapter
654139
£12,83 Unit Price incl. VAT
9
Fuse 20A
CM225720
£4,74 Unit Price incl. VAT
10
Relay rubber
AP8220546
£3,74 Unit Price incl. VAT
11
Injection relay 12V-40W
895481
£19,52 Unit Price incl. VAT
12
Fusible 5A
CM225705
£7,57 Unit Price incl. VAT
13
connector for fall sensor
887193
£9,68 Unit Price incl. VAT
14
Elastic
AP8120177
£6,95 Unit Price incl. VAT
15
Washer 5,5x15x1,6
AP8150248
£0,98 Unit Price incl. VAT
16
Plate light wiring
860026
£21,40 Unit Price incl. VAT
17
Hex socket screw
AP8225369
£1,27 Unit Price incl. VAT
18
Fall sensor
2B004498
Not Available
19
Black hose D12*
AP8102151
Not Available
20
Fuse 10A
CM225610
£7,18 Unit Price incl. VAT
21
Fuse 15A
CM225615
£5,77 Unit Price incl. VAT
22
Fuse 7,5A
CM225607
£4,74 Unit Price incl. VAT
23
Rubber w/ insert
AP8120531
£6,84 Unit Price incl. VAT
24
Bush
2B004490
£2,75 Unit Price incl. VAT
25
Engine wiring
2D000360
£210,59 Unit Price incl. VAT

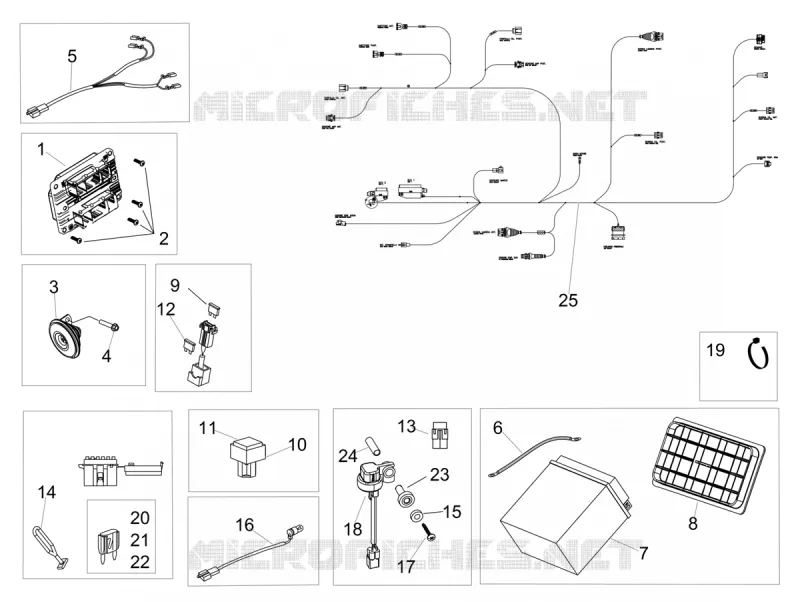

Find the detailed REAR ELECTRICAL SYSTEM APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
