Engine displacement
500
2
Model
ATLANTIC
3
Year
2001
4
Trim
Atlantic
5
Parts Catalog
Undersaddle
6
Parts Diagram
Parts Catalog
Central body II
by
Saddle unit
Undersaddle
1
2
3
4
5
6
7
8
9
10
11
1
Lower helmet compartment
AP8149483
Not Available
2
Upper helmet compartment
AP8168740
Not Available
2
Upper helmet compartment
AP8149484
Not Available
3
Battery cover, black
AP8149434
£21,74 Unit Price incl. VAT
4
Helmet comp.cover
AP8158905
Not Available
5
Front protection
AP8129301
Not Available
6
Gasket
AP8144546
Not Available
7
Hook
AP8104591
£12,18 Unit Price incl. VAT
8
Helmet lock cable
AP8114459
Not Available
9
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
10
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
11
Clip M6
AP8102376
Not Available

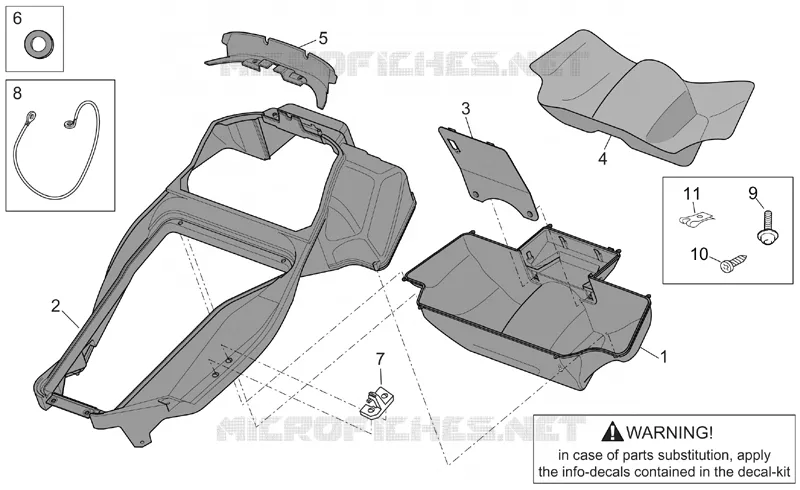

Find the detailed Undersaddle APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
