1
Engine displacement
500
2
Model
ATLANTIC
3
Year
2001
4
Trim
Atlantic
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Engine assembly
by
Drive shaft
Crankcase
1
2
2
3
4
4
5
5
6
7
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
20
20
20
21
1
Crankcase assy
AP8560210
Not Available
1
Crankcase assy
AP8560192
Not Available
1
Crankcase assy
AP8560191
Not Available
1
Crankcase assy
AP8560189
Not Available
1
Crankcase assy cat4
AP8560213
Not Available
1
Crankcase assy cat3
AP8560212
Not Available
1
Crankcase assy
AP8560190
Not Available
1
Crankcase assy cat2
AP8560211
Not Available
2
Stud bolt M10x1,25x166
AP8560076
Not Available
3
Screw w/ flange M6x65
AP8560104
Not Available
4
Nut M10x1,25
AP8560042
Not Available
5
Bearing d20x42x12
AP8560096
Not Available
6
Gasket
AP8560084
Not Available
7
Cover M12x1,5
AP8560014
Not Available
8
Nozzle
AP8560017
Not Available
9
Dowel
AP8560016
Not Available
10
Bearing D20x52x15
AP8570004
Not Available
10
Bearing d17x47x14
AP8560003
Not Available
11
Snap ring
AP8550094
Not Available
12
Oil seal 35x47x7
AP8560123
Not Available
13
Oil level rod cpl.
AP8551068
Not Available
14
O-ring
AP8550334
Not Available
15
Bearing
AP8550579
Not Available
16
Bearing d15x42x13
AP8560019
Not Available
17
Oil seal 25x40x7
AP8560030
Not Available
18
Snap ring
AP8560007
Not Available
19
Bearing d25x52x15
AP8560027
Not Available
20
Pin d.9,5 h=15
AP8550107
Not Available
21
Screw w/ flange M6x75
AP8560106
Not Available

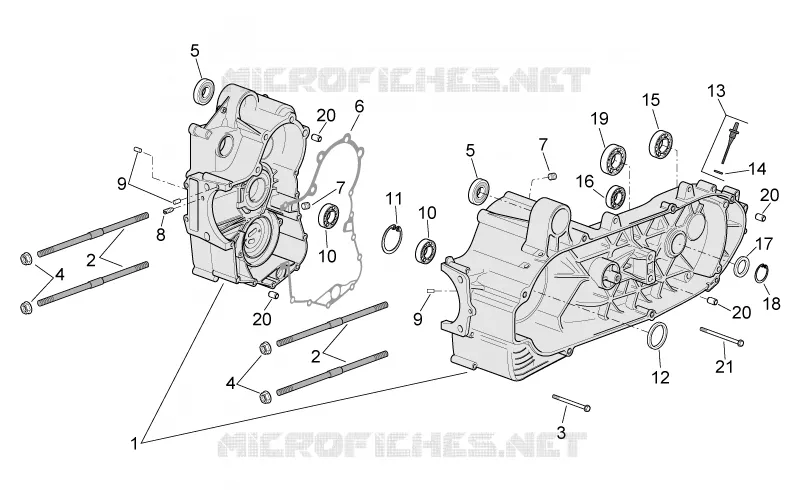

Find the detailed Crankcase APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
