1
Engine displacement
500
2
Model
ATLANTIC
3
Year
2001
4
Trim
Atlantic
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front brake caliper
by
Rear brake caliper
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
16
17
1
Rear tyre 140/60-14"
AP8109268
Not Available
2
Rear brake disc
AP8113800
Not Available
3
Rear wheel Silver
AP8108960
Not Available
4
Tubeless tyre valve
AP8201546
£5,35 Unit Price incl. VAT
5
Ring 47
AP8152401
£1,87 Unit Price incl. VAT
6
Exhaust pipe support clamp
AP8134710
Not Available
7
Rear wheel spacer
AP8125845
Not Available
8
Rear wheel spacer
AP8125862
Not Available
9
DAX flange nut M16x1,25
AP8221329
Not Available
10
Dust shield
AP8149465
£11,84 Unit Price incl. VAT
11
Dust cover
AP8110086
£12,07 Unit Price incl. VAT
12
Bearing 6303-2RS1
AP8152402
Not Available
13
screw
AP8152403
£2,06 Unit Price incl. VAT
14
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
15
Screw w/ flange
AP8152291
£1,94 Unit Price incl. VAT
16
screw
AP8208546
Not Available
17
Curved spring washer *
AP8150210
£1,27 Unit Price incl. VAT

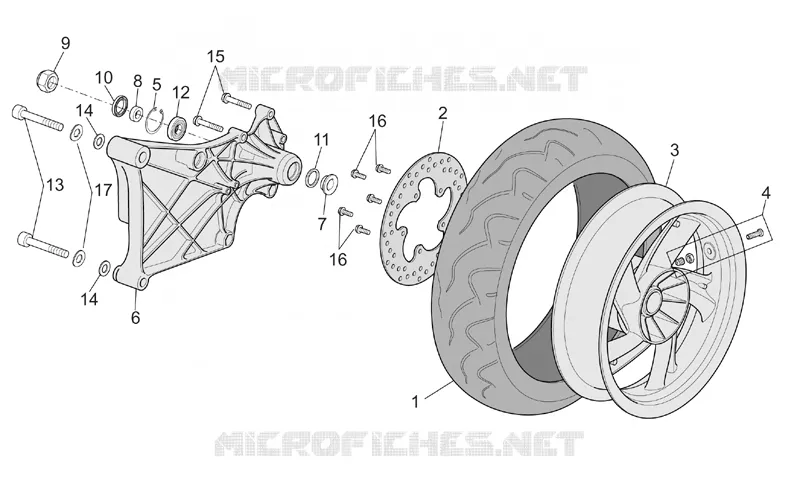

Find the detailed Rear wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
