Parts Catalog
Throttle body
6
Parts Diagram
Parts Catalog
Ignition unit
by
Acc. - Windshields
Throttle body
1
2
3
4
5
5
6
6
7
8
1
Intake manifold
AP8560204
Not Available
1
Intake manifold
AP8560154
Not Available
2
Injector
AP8560170
Not Available
3
Throttle body cpl.
AP8560048
Not Available
4
Screw w/ flange
AP8560153
Not Available
5
Screw w/ flange M6x30
AP8550558
Not Available
6
Screw w/ flange
AP8113789
Not Available
7
Hose clamp
AP8560116
Not Available
8
Plate
AP8134839
Not Available

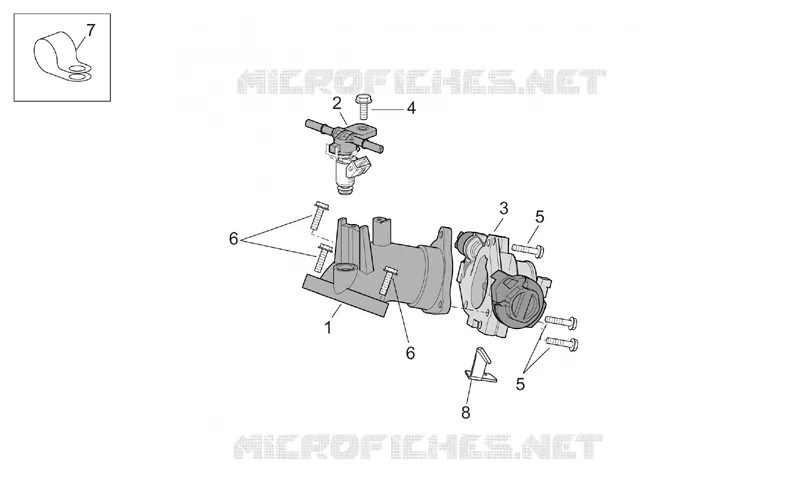

Find the detailed Throttle body APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
