Parts Catalog
LH Controls
6
Parts Diagram
Parts Catalog
Handlebar
by
RH controls
LH Controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Rear master cylinder
AP8113698
Not Available
2
Brake lever U-bolt
AP8113637
£33,77 Unit Price incl. VAT
3
Brake lever
AP8118542
£53,84 Unit Price incl. VAT
4
Pump revision kit
AP8133537
Not Available
5
Pump cover
AP8113860
£29,60 Unit Price incl. VAT
6
stop Button
AP8127305
Not Available
7
Lever screw
AP8125757
£12,31 Unit Price incl. VAT
8
Nut
AP8213298
£17,00 Unit Price incl. VAT
9
Pump cover screw
AP8113859
Not Available
10
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
11
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
12
LH lights selector
AP8127100
Not Available
13
Hex socket screw M5x16
AP8152268
£1,88 Unit Price incl. VAT
14
Hex socket screw M5x25
AP8152270
£1,88 Unit Price incl. VAT
15
Handgrip pair, black
AP8118675
Not Available
16
Turn indic.lightbutton cap
AP8127482
Not Available

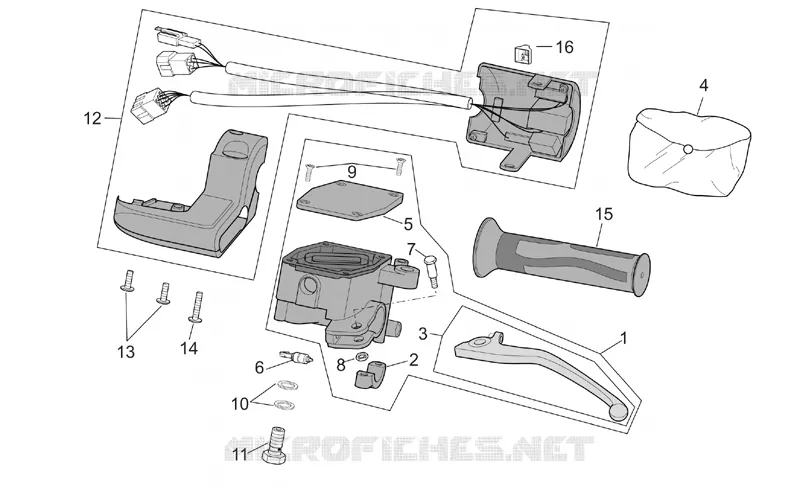

Find the detailed LH Controls APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
