Engine displacement
500
2
Model
ATLANTIC
3
Year
2003
4
Trim
Atlantic
5
Parts Catalog
Rear shock absorber
6
Parts Diagram
Parts Catalog
Kaifa front fork - Hubs, sleeves
by
Front body I
Rear shock absorber
1
1
2
2
3
3
4
4
5
5
6
6
6
6
7
7
7
7
1
Shock absorber
AP8163168
Not Available
1
Shock absorber
AP8163334
Not Available
2
Shock absorber plate
AP8134874
Not Available
3
Hex socket screw
AP8150086
£3,60 Unit Price incl. VAT
4
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
5
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
6
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
7
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT

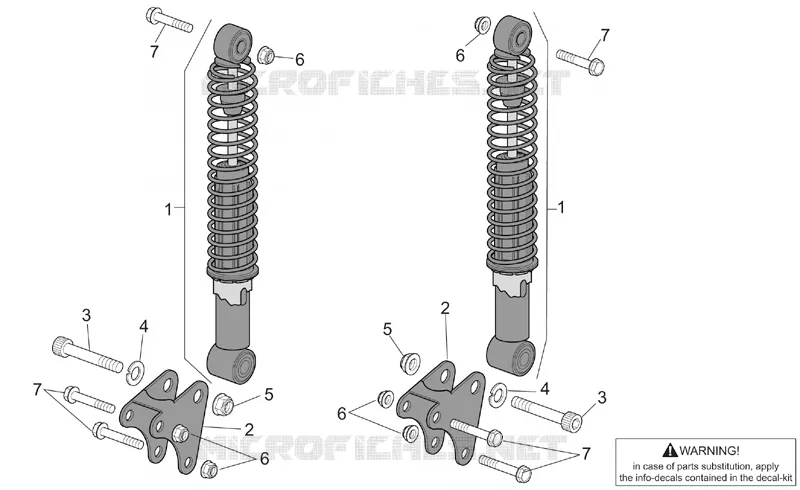

Find the detailed Rear shock absorber APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
