1
Engine displacement
50
2
Model
AMICO
3
Year
1997
4
Trim
AMICO
5
Parts Catalog
Handlebar - Dashboard
6

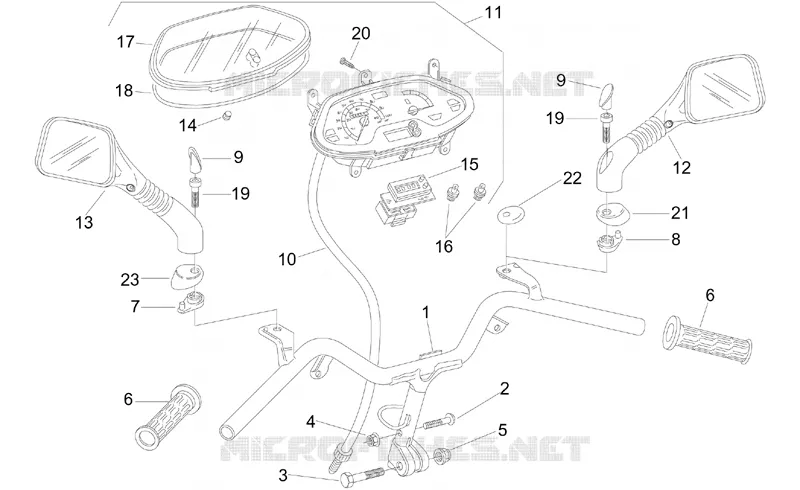

Parts Diagram
Parts Catalog
Rear body V
by
Controls assembly I
Handlebar - Dashboard
1
2
3
4
5
6
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
1
Handlebar w phor ctng.
AP8218160
Not Available
2
Hex socket screw
AP8150290
£5,15 Unit Price incl. VAT
3
Screw
AP8150323
£1,00 Unit Price incl. VAT
4
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
5
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
6
Handgrip pair, black
AP8218275
Not Available
6
Handgrip pair, blue
AP8218328
Not Available
7
LH rearview mirror base
AP8221153
Not Available
8
RH rearview mirror base
AP8221154
Not Available
9
RH + LH rearview mirror plug
AP8201818
Not Available
9
RH + LH rearview mirror plug
AP8202071
£8,11 Unit Price incl. VAT
10
Odometer cable
AP8214169
£15,05 Unit Price incl. VAT
11
Dashboard complete
AP8212966
Not Available
11
Dashboard complete
AP8212824
Not Available
12
RH rearview mirror
AP8201835
Not Available
12
RH rearview mirror
AP8201975
£36,10 Unit Price incl. VAT
13
LH rearview mirror
AP8201836
Not Available
13
LH rearview mirror
AP8201976
Not Available
14
Clock rubber
AP8212405
£5,93 Unit Price incl. VAT
15
Digital clock
AP8212406
£89,44 Unit Price incl. VAT
16
Lampholder, complete 12V-1,2W
AP8212407
£16,45 Unit Price incl. VAT
17
Dashboard window
AP8212402
Not Available
18
Dashboard lens seal
AP8220422
Not Available
19
Hex socket screw M8x40
AP8150171
Not Available
20
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
21
RH mirror rubber
AP8220347
Not Available
22
RH rear mirror plug
AP8220324
Not Available
23
Rubber spacer *
AP8220331
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
