1
Engine displacement
50
2
Model
AMICO
3
Year
1997
4
Trim
AMICO
5
Parts Catalog

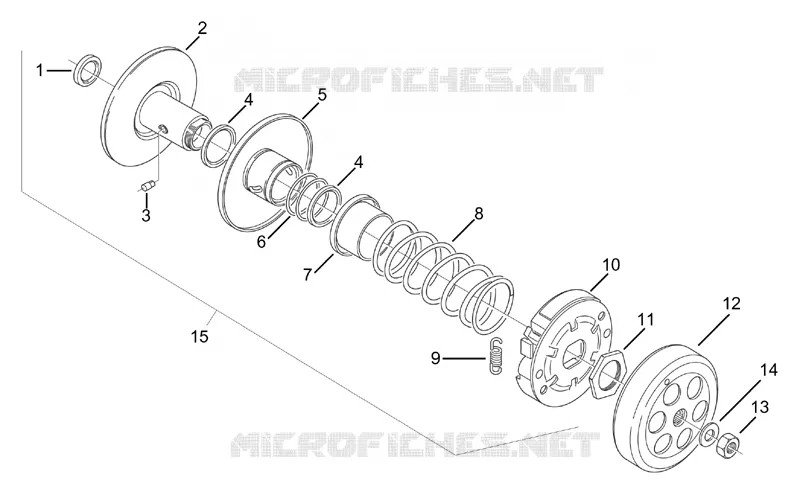

Clutch
6
Parts Diagram
Parts Catalog
Central crank-case set
by
Carburettor - oil pump assy.
Clutch
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
1
Oil seal
AP8206214
Not Available
2
Sec. fixed sheave, complete
AP8206157
Not Available
3
Guide roller for variator
AP8206198
Not Available
4
Oil seal D32x39x4
AP8206200
Not Available
5
Sec. sliding sheave, complete
AP8206158
Not Available
6
O-ring D37,8x1,7
AP8206197
Not Available
7
Variator spring cup
AP8206178
Not Available
8
Sec. sheave spring
AP8206191
Not Available
9
Brake shoes return spring
AP8206418
Not Available
9
Brake shoes return spring
AP8206196
Not Available
10
Centrifugal clutch assy
AP8206703
Not Available
11
Nut M28x1
AP8206199
Not Available
12
Clutch housing, complete
AP8206135
Not Available
13
Nut M10x1 H=8
AP8206186
Not Available
14
Spring washer D10x21x2
AP8502471
£0,94 Unit Price incl. VAT
15
Speed variator w/ clutch
AP8206699
Not Available
15
Speed variator w/ clutch
AP8206786
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
