1
Engine displacement
50
2
Model
AMICO
3
Year
1997
4
Trim
AMICO
5
Parts Catalog

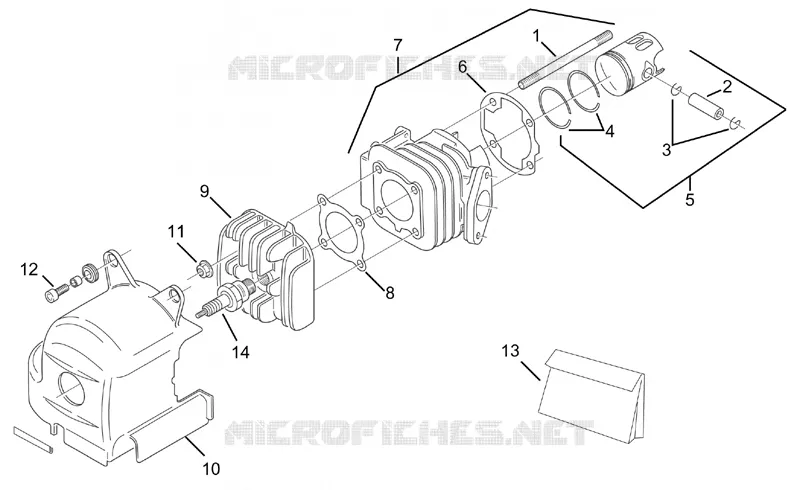

Cylinder head
6
Parts Diagram
Parts Catalog
Flywheel
by
Connecting rod group
Cylinder head
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Stud bolt M6x1x106
AP8206189
£7,79 Unit Price incl. VAT
2
Piston pin D10x33
AP8206174
Not Available
3
Stop ring D10
AP8206176
Not Available
4
Piston ring set D40
AP8206120
Not Available
5
Piston assy D40,5
AP8206219
Not Available
5
Piston assy D40
AP8206218
£154,24 Unit Price incl. VAT
6
Cylinder base gasket
AP8206161
Not Available
7
Cylinder with piston
AP8206224
Not Available
7
Cylinder with piston
AP8206456
Not Available
8
Cylinder head gasket
AP8206166
Not Available
9
Cylinder head
AP8206450
Not Available
9
Cylinder head
AP8206104
Not Available
10
Cylinder air shroud
AP8206113
Not Available
11
Flanged nut M6x5
AP8206184
Not Available
12
Screw M6x16
AP8502563
Not Available
13
Gasket set
AP8206782
Not Available
14
Spark plug BR7HS
AP8206870
£6,60 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
