1
Engine displacement
50
2
Model
SR
3
Year
2008
4
Trim
SR H2O NEW (IE+Carb.)
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Front brake caliper
by
Central body II

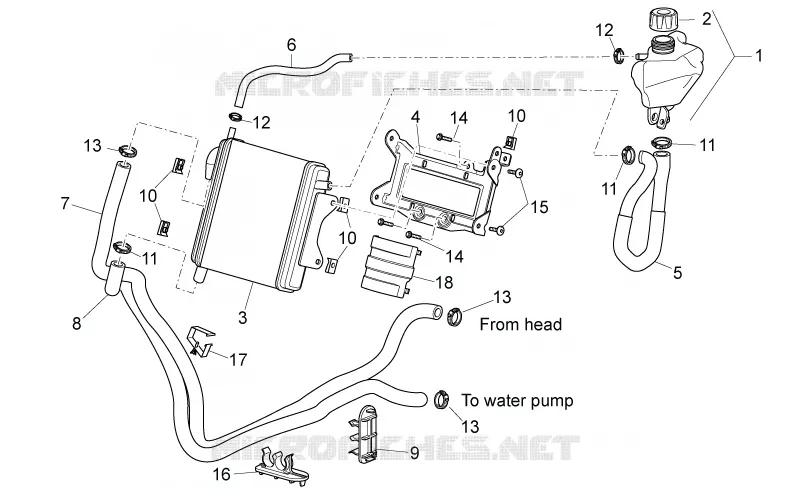

Cooling system
1
2
3
4
5
6
7
8
9
10
10
10
11
11
11
12
12
13
13
13
14
14
15
16
17
18
1
Expansion tank
AP8268259
£96,12 Unit Price incl. VAT
2
Expansion tank plug
AP8570122
£40,31 Unit Price incl. VAT
3
Water cooler
AP8202406
£412,99 Unit Price incl. VAT
4
Water cooler support
AP8234232
£25,75 Unit Price incl. VAT
5
Cooler-expansion tank pipe
AP8144691
£50,05 Unit Price incl. VAT
6
Breather pipe 7,5X3,5
AP8144506
£28,10 Unit Price incl. VAT
7
Water cooler-head tube
AP8220668
£81,88 Unit Price incl. VAT
7
Water cooler-head tube
AP8220665
£77,98 Unit Price incl. VAT
8
Water cooler-pump tube
AP8220664
Not Available
9
Water tubes holder
AP8234218
£23,84 Unit Price incl. VAT
10
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
11
White hose clip D17,5x8
AP8102349
£10,54 Unit Price incl. VAT
12
White hose clip D.13,5x6
AP8102765
£6,40 Unit Price incl. VAT
13
Hose clamp 17-25
AP8102732
£8,94 Unit Price incl. VAT
14
Screw w/ flange
598839
£1,27 Unit Price incl. VAT
15
Screw w/ flange M5x12
AP8152302
Not Available
16
Water tubes holder
AP8234218
£23,84 Unit Price incl. VAT
17
Water tubes holder
AP8134460
Not Available
18
Wiring cover
AP8268254
£15,05 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
