1
Engine displacement
50
2
Model
SR
3
Year
2008
4
Trim
SR H2O NEW (IE+Carb.)
5
Parts Catalog
Cylinder head/Carburettor
6
Parts Diagram
Parts Catalog
Cylinder head/Throttle body
by
Rear wheel - disc brake

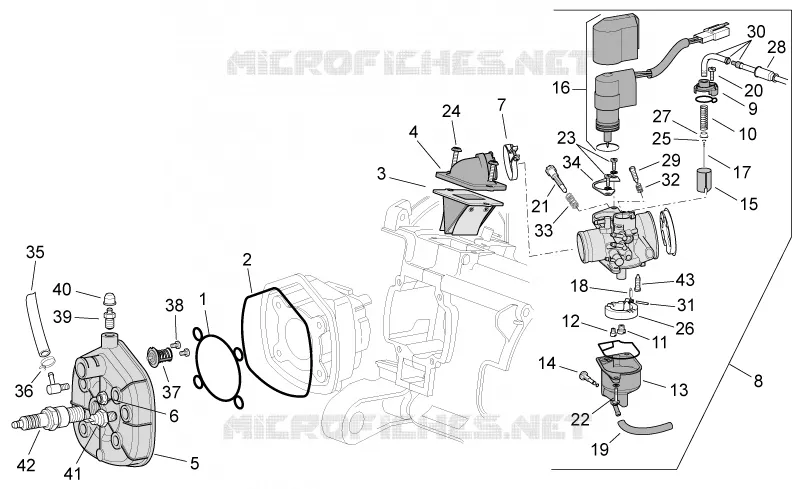

Cylinder head/Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
1
Inner gasket head
288289
£5,99 Unit Price incl. VAT
2
Outer gasket head
482988
£3,13 Unit Price incl. VAT
3
Reed valve assy
82827R
Not Available
4
Intake manifold
830939
Not Available
5
Cylinder head
826490
Not Available
6
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
7
Hose clamp
825865
£2,24 Unit Price incl. VAT
8
Carburettor cpl.
833708
£256,56 Unit Price incl. VAT
8
Carburettor cpl.
AP8276087
Not Available
9
Gas valve cover
431654
£4,97 Unit Price incl. VAT
10
Gas valve spring
482942
£1,36 Unit Price incl. VAT
11
Main jet 53
CM101704
£11,28 Unit Price incl. VAT
11
Main jet 60
CM101711
£6,11 Unit Price incl. VAT
12
Idle jet
CM102103
£4,21 Unit Price incl. VAT
13
Complete reservoir
484704
£25,66 Unit Price incl. VAT
14
screw
432456
£7,69 Unit Price incl. VAT
15
Gas valve
CM141711
£8,82 Unit Price incl. VAT
15
Gas valve
CM141710
£8,82 Unit Price incl. VAT
16
Starter
CM105905
£168,23 Unit Price incl. VAT
17
Conical pin
CM107510
£18,34 Unit Price incl. VAT
17
Conical pin A13
AP8276033
£18,67 Unit Price incl. VAT
18
Fuel closing needle
CM128501
£13,44 Unit Price incl. VAT
19
Float chamber dump pipe L=130
AP8550215
Not Available
20
screw
288865
£1,15 Unit Price incl. VAT
21
Gas valve adjuster screw
828074
£9,91 Unit Price incl. VAT
22
Float chamber fixing screw
288862
£3,06 Unit Price incl. VAT
23
screw
289575
£2,18 Unit Price incl. VAT
24
screw M6x25
830487
Not Available
25
Ring
288872
£1,38 Unit Price incl. VAT
26
Float cpl.
482916
£18,86 Unit Price incl. VAT
27
Conical pin clip
288873
£2,12 Unit Price incl. VAT
28
Throttle cable cap
289903
Not Available
29
Air adjuster screw
CM107701
£6,98 Unit Price incl. VAT
30
Baffle tube
113903
£6,40 Unit Price incl. VAT
31
Float pin
288881
£1,84 Unit Price incl. VAT
32
Spring
085285
Not Available
33
Spring
152608
£1,14 Unit Price incl. VAT
34
Plate
288863
£2,48 Unit Price incl. VAT
35
Head-carb.by-pass pipe
484260
£12,71 Unit Price incl. VAT
36
Hose clamp
CM002901
£0,62 Unit Price incl. VAT
37
Thermostat
483395
£46,62 Unit Price incl. VAT
38
Self-tapping screw
256756
£1,10 Unit Price incl. VAT
39
Bleed screw
430045
£1,60 Unit Price incl. VAT
40
Bleed valve cap
063435
Not Available
41
Thermistor
584573
Not Available
42
Spark plug Champion RN1C
438031
£6,24 Unit Price incl. VAT
42
Spark plug BR9ES
AP8206915
£6,07 Unit Price incl. VAT
43
Diffuser 208 HA
CM106229
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
